Distribution of Offensive Rebounding Specialization by Position (2024 NBA Season)

Offensive rebounds as a proportion of total rebounds - Notice the multi-modal patterns

30DayChartChallenge

2025

An analysis of NBA player rebounding specialization patterns using ridge plots to visualize multi-modal distributions. This visualization for Day 10 of the #30DayChartChallenge explores how players within the same position show different rebounding tendencies, with particular focus on offensive rebounding ratios.

Author

Steven Ponce

Published

April 10, 2025

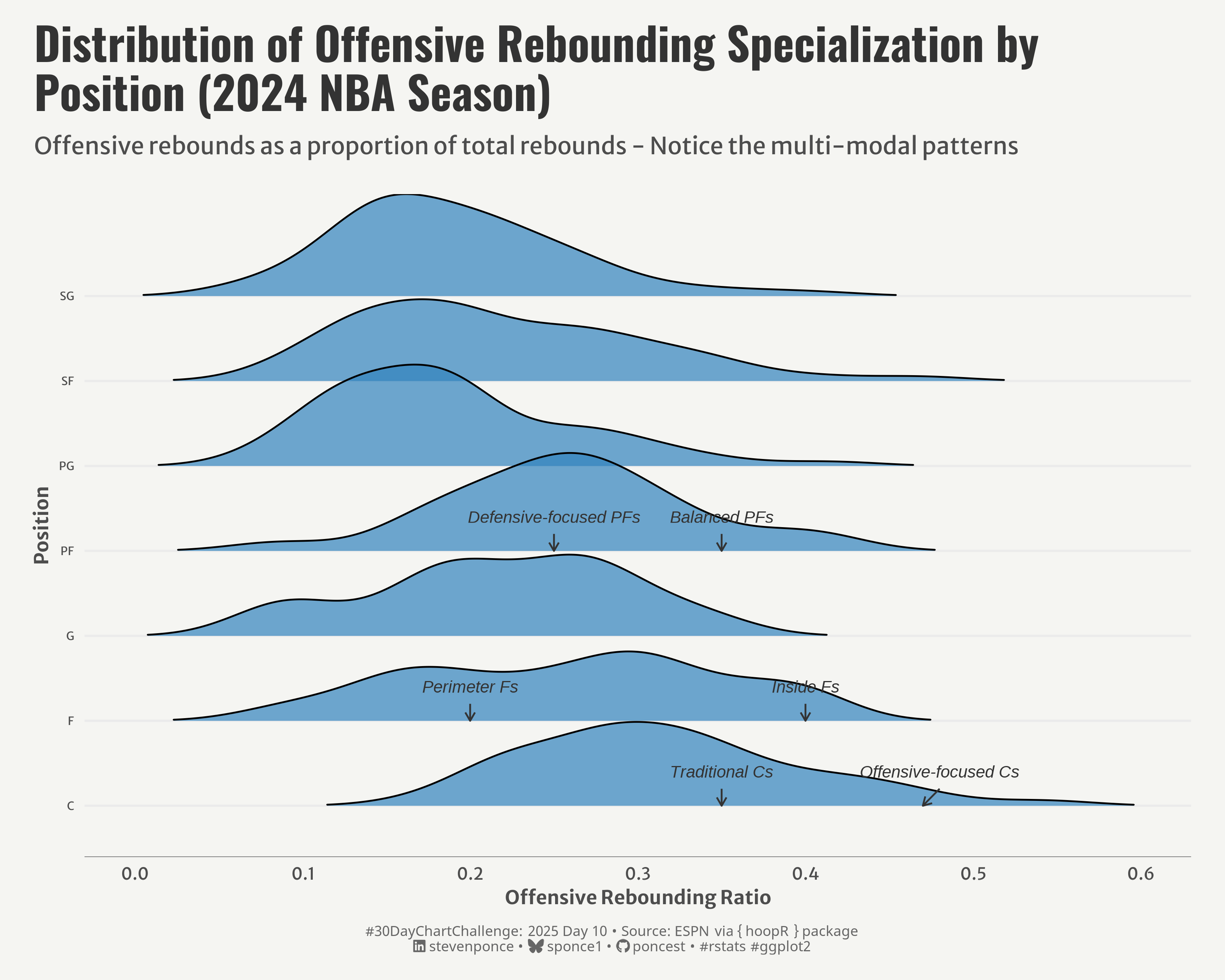

Figure 1: Ridge plot showing the distribution of offensive rebounding ratios across NBA positions. Multi-modal patterns are visible, with annotations highlighting different player types: Defensive-focused and Balanced Power Forwards, Perimeter and Inside Forwards, and Traditional and Offensive-focused Centers. Centers show highest ratios around 0.4, while guards have lower ratios centered around 0.2.

Steps to Create this Graphic

1. Load Packages & Setup

Show code

## 1. LOAD PACKAGES & SETUP ----
suppressPackageStartupMessages({
pacman::p_load(
tidyverse,      # Easily Install and Load the 'Tidyverse'
  tidyverse,      # Easily Install and Load the 'Tidyverse'
  ggtext,         # Improved Text Rendering Support for 'ggplot2'
  showtext,       # Using Fonts More Easily in R Graphs
  janitor,        # Simple Tools for Examining and Cleaning Dirty Data
  skimr,          # Compact and Flexible Summaries of Data
  scales,         # Scale Functions for Visualization
  lubridate,      # Make Dealing with Dates a Little Easier
  hoopR,          # Access Men's Basketball Play by Play Data
  ggridges,       # Ridgeline Plots in 'ggplot2'
  camcorder       # Record Your Plot History
)
})

### |- figure size ----
gg_record(
    dir    = here::here("temp_plots"),
    device = "png",
    width  = 10,
    height = 8,
    units  = "in",
    dpi    = 320
)

# Source utility functions
suppressMessages(source(here::here("R/utils/fonts.R")))
source(here::here("R/utils/social_icons.R"))
source(here::here("R/utils/image_utils.R"))
source(here::here("R/themes/base_theme.R"))

2. Read in the Data

Show code

# Get NBA player stats for 2024 season
nba_players_2024 <- load_nba_player_box(seasons = 2024)

3. Examine the Data

Show code

glimpse(nba_players_2024)
skim(nba_players_2024)

4. Tidy Data

Show code

### |- Tidy ----
# Season stats
player_season_stats <- nba_players_2024 |>
  group_by(athlete_id, athlete_display_name, athlete_position_abbreviation) |>
  summarize(
    games_played = n(),
    across(
      c(minutes, points, field_goals_attempted, field_goals_made,
        three_point_field_goals_attempted, three_point_field_goals_made,
        free_throws_attempted, free_throws_made, offensive_rebounds,
        defensive_rebounds, rebounds, assists, turnovers, steals, blocks),
      ~ sum(.x, na.rm = TRUE),
      .names = "total_{.col}"
    ),
    .groups = "drop"
  )

# Players stats
players_stats <- player_season_stats |>
  filter(total_minutes > 0, games_played >= 10) |>
  mutate(
    # metrics
    min_per_game = total_minutes / games_played,
    three_pt_rate = total_three_point_field_goals_attempted / total_minutes,

    # Free throw rate (FT attempts per minute)
    ft_rate = total_free_throws_attempted / total_minutes,

    # Offensive rebounding ratio (percentage of total rebounds that are offensive)
    orb_ratio = total_offensive_rebounds / (total_offensive_rebounds + total_defensive_rebounds + 0.001),

    # Shooting distance preference (proxy using 3PT to total FG ratio)
    three_pt_preference = total_three_point_field_goals_attempted / (total_field_goals_attempted + 0.001)
  ) |>
  filter(min_per_game >= 10)

5. Visualization Parameters

Show code

### |- plot aesthetics ----
colors <- get_theme_colors(
  palette = c("#3182bd", "Positive Impact" = "#333333")
  )

### |-  titles and caption ----
# text
title_text    <- str_wrap("Distribution of Offensive Rebounding Specialization by Position (2024 NBA Season)",
                          width = 60)
subtitle_text <- str_wrap("Offensive rebounds as a proportion of total rebounds - Notice the multi-modal patterns",
                          width = 100)

# Create caption
caption_text <- create_dcc_caption(
  dcc_year = 2025,
  dcc_day = 10,
  source_text =  "ESPN via { hoopR } package"
)

### |-  fonts ----
setup_fonts()
fonts <- get_font_families()

### |-  plot theme ----

# Start with base theme
base_theme <- create_base_theme(colors)

# Add weekly-specific theme elements
weekly_theme <- extend_weekly_theme(
  base_theme,
  theme(
    # Text styling
    plot.title = element_text(face = "bold", family = fonts$title, size = rel(1.14), margin = margin(b = 10)),
    plot.subtitle = element_text(family = fonts$subtitle, color = colors$text, size = rel(0.78), margin = margin(b = 20)),

    # Axis elements
    axis.title = element_text(color = colors$text, size = rel(0.8)),
    axis.text = element_text(color = colors$text, size = rel(0.7)),
    axis.text.y = element_text(color = colors$text, size = rel(0.68)),

    axis.line.x = element_line(color = "gray50", linewidth = .2),

    # Grid elements
    panel.grid.minor.x = element_blank(),
    panel.grid.major.x = element_blank(),

    # Legend elements
    legend.position = "top",
    legend.title = element_text(family = fonts$text, size = rel(0.8)),
    legend.text = element_text(family = fonts$text, size = rel(0.7)),

    # Plot margins
    plot.margin = margin(t = 10, r = 20, b = 10, l = 20),
  )
)

# Set theme
theme_set(weekly_theme)

6. Plot

Show code

### |-  Plot ----
p <- ggplot(players_stats, aes(x = orb_ratio, y = athlete_position_abbreviation)) +
  # Geoms
  geom_density_ridges(alpha = 0.7, scale = 1.2, rel_min_height = 0.01, fill = colors$palette[1]) +
  # Annotation
  annotate("text", x = 0.25, y = 4.4, label = "Defensive-focused PFs", size = 3.5, fontface = "italic", color = colors$palette[2]) +
  annotate("text", x = 0.35, y = 4.4, label = "Balanced PFs", size = 3.5, fontface = "italic", color = colors$palette[2]) +
  annotate("segment", x = 0.25, xend = 0.25, y = 4.2, yend = 4, arrow = arrow(length = unit(0.2, "cm")), color = colors$palette[2]) +
  annotate("segment", x = 0.35, xend = 0.35, y = 4.2, yend = 4, arrow = arrow(length = unit(0.2, "cm")), color = colors$palette[2]) +

  annotate("text", x = 0.20, y = 2.4, label = "Perimeter Fs", size = 3.5, fontface = "italic", color = colors$palette[2]) +
  annotate("text", x = 0.40, y = 2.4, label = "Inside Fs", size = 3.5, fontface = "italic", color = colors$palette[2]) +
  annotate("segment", x = 0.20, xend = 0.20, y = 2.2, yend = 2, arrow = arrow(length = unit(0.2, "cm")), color = colors$palette[2]) +
  annotate("segment", x = 0.40, xend = 0.40, y = 2.2, yend = 2, arrow = arrow(length = unit(0.2, "cm")), color = colors$palette[2]) +

  annotate("text", x = 0.35, y = 1.4, label = "Traditional Cs", size = 3.5, fontface = "italic", color = colors$palette[2]) +
  annotate("text", x = 0.48, y = 1.4, label = "Offensive-focused Cs", size = 3.5, fontface = "italic", color = colors$palette[2]) +
  annotate("segment", x = 0.35, xend = 0.35, y = 1.2, yend = 1, arrow = arrow(length = unit(0.2, "cm")), color = colors$palette[2]) +
  annotate("segment", x = 0.48, xend = 0.47, y = 1.2, yend = 1, arrow = arrow(length = unit(0.2, "cm")), color = colors$palette[2]) +
  # Scales
  scale_x_continuous(
    limits = c(0, 0.6),
    breaks = seq(0, 0.6, by = 0.1)
    ) +
  # Labs
  labs(
    title = title_text,
    subtitle = subtitle_text,
    caption = caption_text,
    x = "Offensive Rebounding Ratio",
    y = "Position"
    ) +
  # Theme
  theme(
    plot.title = element_text(
      size = rel(1.9),
      family = fonts$title,
      face = "bold",
      color = colors$title,
      margin = margin(t = 5, b = 5)
    ),
    plot.subtitle = element_text(
      size = rel(1),
      family = fonts$subtitle,
      color = colors$subtitle,
      lineheight = 1.2,
      margin = margin(t = 5, b = 20)
    ),
    plot.caption = element_markdown(
      size = rel(0.6),
      family = fonts$caption,
      color = colors$caption,
      lineheight = 0.65,
      hjust = 0.5,
      halign = 0.5,
      margin = margin(t = 10, b = 5)
    ),
  )

7. Save

Show code

### |-  plot image ----

save_plot(
  p,
  type = "30daychartchallenge",
  year = 2025,
  day = 10,
  width = 10,
  height = 8
  )

8. Session Info

Expand for Session Info

R version 4.4.1 (2024-06-14 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 22631)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices datasets  utils     methods   base

other attached packages:
 [1] here_1.0.1      camcorder_0.1.0 ggridges_0.5.6  hoopR_2.1.0
 [5] scales_1.3.0    skimr_2.1.5     janitor_2.2.0   showtext_0.9-7
 [9] showtextdb_3.0  sysfonts_0.8.9  ggtext_0.1.2    lubridate_1.9.3
[13] forcats_1.0.0   stringr_1.5.1   dplyr_1.1.4     purrr_1.0.2
[17] readr_2.1.5     tidyr_1.3.1     tibble_3.2.1    ggplot2_3.5.1
[21] tidyverse_2.0.0

loaded via a namespace (and not attached):
 [1] tidyselect_1.2.1    farver_2.1.2        fastmap_1.2.0
 [4] pacman_0.5.1        promises_1.3.0      digest_0.6.37
 [7] timechange_0.3.0    lifecycle_1.0.4     rsvg_2.6.1
[10] processx_3.8.4      magrittr_2.0.3      compiler_4.4.0
[13] rlang_1.1.4         tools_4.4.0         utf8_1.2.4
[16] yaml_2.3.10         data.table_1.16.2   knitr_1.49
[19] htmlwidgets_1.6.4   curl_6.0.0          xml2_1.3.6
[22] repr_1.1.7          websocket_1.4.2     withr_3.0.2
[25] grid_4.4.0          fansi_1.0.6         colorspace_2.1-1
[28] future_1.34.0       progressr_0.15.1    globals_0.16.3
[31] cli_3.6.3           rmarkdown_2.29      ragg_1.3.3
[34] generics_0.1.3      RcppParallel_5.1.10 rstudioapi_0.17.1
[37] httr_1.4.7          tzdb_0.4.0          commonmark_1.9.2
[40] chromote_0.4.0      rvest_1.0.4         parallel_4.4.0
[43] base64enc_0.1-3     vctrs_0.6.5         jsonlite_1.8.9
[46] hms_1.1.3           listenv_0.9.1       systemfonts_1.1.0
[49] magick_2.8.5        glue_1.8.0          parallelly_1.43.0
[52] gifski_1.32.0-1     codetools_0.2-20    ps_1.8.1
[55] stringi_1.8.4       gtable_0.3.6        later_1.3.2
[58] munsell_0.5.1       furrr_0.3.1         pillar_1.9.0
[61] htmltools_0.5.8.1   R6_2.5.1            textshaping_0.4.0
[64] rprojroot_2.0.4     evaluate_1.0.1      markdown_1.13
[67] gridtext_0.1.5      snakecase_0.11.1    renv_1.0.3
[70] Rcpp_1.0.13-1       svglite_2.1.3       xfun_0.49
[73] pkgconfig_2.0.3

9. GitHub Repository

Expand for GitHub Repo

The complete code for this analysis is available in 30dcc_2025_10.qmd.

For the full repository, click here.

10. References

Expand for References

Data Sources:
- ESPN via { hoopR } package: hoopR
