The Race to 500 Home Runs

McGwire was fastest (1,688 games) but linked to PED use. Babe Ruth holds the fastest clean record at 1,790 games, while Eddie Murray needed 2,971 games.

SWDchallenge
Data Visualization
R Programming
2025
A cumulative line chart visualizing the path to 500 career home runs for all 28 members of baseball’s elite club. This SWD challenge entry demonstrates the ‘less is better’ principle—where fewer games represents superior performance—by highlighting the fastest (McGwire), fastest clean (Ruth), and slowest (Murray) trajectories.
Author

Steven Ponce

Published

December 1, 2025

Challenge

This month’s challenge asks you to create a visual where lower values represent better performance or outcomes. Whether it’s time, cost, risk, or something else, your goal is to make it immediately clear that less is the win.

Additional information can be found HERE

Visualization

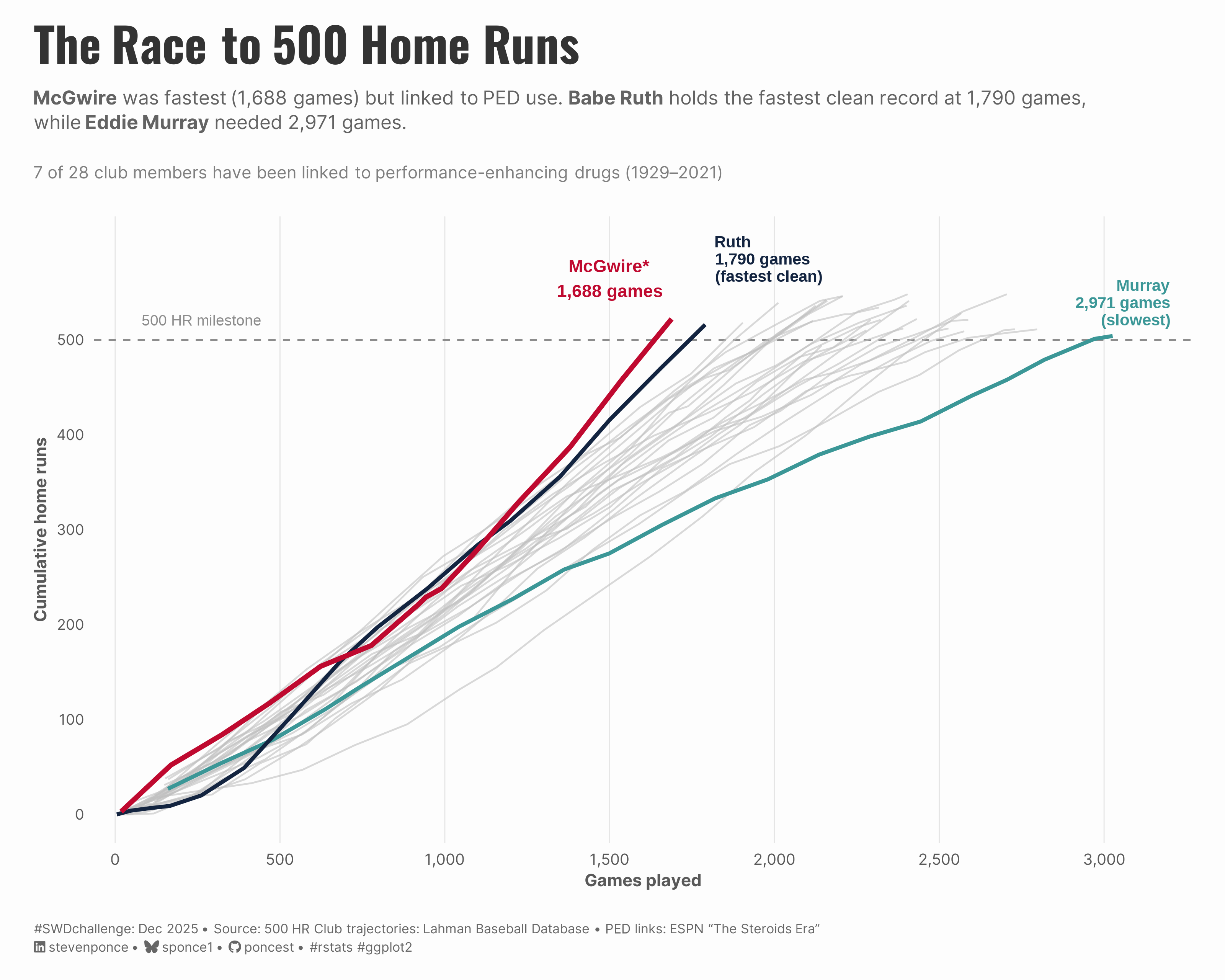

Figure 1: Line chart showing the cumulative home run trajectories for all 28 members of baseball’s 500 Home Run Club. Three players are highlighted: Mark McGwire in red reached 500 HR fastest at 1,688 games but is linked to PED use; Babe Ruth in dark blue holds the fastest clean record at 1,790 games; Eddie Murray in teal took the longest at 2,971 games. The remaining 25 players appear as gray lines, illustrating a spread of roughly 1,300 games between the fastest and slowest paths to the milestone.

Steps to Create this Graphic

1. Load Packages & Setup

Show code
```{r}
#| label: load

if (!require("pacman")) install.packages("pacman")
pacman::p_load(
  tidyverse,   # Easily Install and Load the 'Tidyverse'
  ggtext,      # Improved Text Rendering Support for 'ggplot2'
  showtext,    # Using Fonts More Easily in R Graphs
  janitor,     # Simple Tools for Examining and Cleaning Dirty Data
  scales,      # Scale Functions for Visualization
  glue,        # Interpreted String Literals
  Lahman       # Sean 'Lahman' Baseball Database
)

### |- figure size ----
camcorder::gg_record(
  dir    = here::here("temp_plots"),
  device = "png",
  width  = 10,
  height = 8,
  units  = "in",
  dpi    = 320
)

# Source utility functions
suppressMessages(source(here::here("R/utils/fonts.R")))
source(here::here("R/utils/social_icons.R"))
source(here::here("R/utils/image_utils.R"))
source(here::here("R/themes/base_theme.R"))
```

2. Read in the Data

Show code
```{r}
#| label: read

batting_raw <- Lahman::Batting
people_raw  <- Lahman::People

### |- PED-linked players (Source: ESPN - The Steroids Era) ----
# https://www.espn.com/mlb/topics/_/page/the-steroids-era
# "Of the 10 players [who reached 500 HR between 1998-2009], six -- Barry Bonds,
# Alex Rodriguez, Mark McGwire, Manny Ramirez, Rafael Palmeiro and Gary Sheffield
# -- have been linked to PEDs."
# Sammy Sosa added based on leaked 2003 test results

ped_players <- c(
  "Mark McGwire",
  "Barry Bonds",
  "Alex Rodriguez",
  "Sammy Sosa",
  "Manny Ramirez",
  "Rafael Palmeiro",
  "Gary Sheffield"
)
```

3. Examine the Data

Show code
```{r}
#| label: examine
#| include: true
#| eval: true
#| results: 'hide'
#| warning: false

glimpse(batting_raw)
glimpse(people_raw)
```

4. Tidy Data

Show code
```{r}
#| label: tidy

career_hr <- batting_raw |>
  group_by(playerID) |>
  summarize(
    career_HR = sum(HR, na.rm = TRUE),
    .groups = "drop"
  ) |>
  filter(career_HR >= 500) |>
  left_join(
    people_raw |> select(playerID, nameFirst, nameLast),
    by = "playerID"
  ) |>
  mutate(player_name = paste(nameFirst, nameLast)) |>
  arrange(desc(career_HR))

cumulative_stats <- batting_raw |>
  filter(playerID %in% career_hr$playerID) |>
  group_by(playerID, yearID) |>
  summarize(
    season_HR = sum(HR, na.rm = TRUE),
    season_G  = sum(G, na.rm = TRUE),
    .groups   = "drop"
  ) |>
  arrange(playerID, yearID) |>
  group_by(playerID) |>
  mutate(
    cumulative_HR = cumsum(season_HR),
    cumulative_G  = cumsum(season_G)
  ) |>
  ungroup()

race_data <- cumulative_stats |>
  filter(cumulative_HR <= 550) |>
  left_join(
    people_raw |> select(playerID, nameFirst, nameLast),
    by = "playerID"
  ) |>
  mutate(
    player_name = paste(nameFirst, nameLast),
    is_ped = player_name %in% ped_players,
    player_category = case_when(
      player_name == "Mark McGwire" ~ "mcgwire",
      player_name == "Babe Ruth" ~ "ruth",
      player_name == "Eddie Murray" ~ "murray",
      TRUE ~ "other"
    )
  )
```

5. Visualization Parameters

Show code
```{r}
#| label: params

### |-  plot aesthetics ----
colors <- get_theme_colors(
  palette = list(
    mcgwire = "#BF092F",
    ruth  = "#132440",
    murray = "#3B9797",
    others = "gray75",
    milestone = "gray55",
    grid = "gray90"
  )
)

### |-  titles and caption ----
title_text <- "The Race to 500 Home Runs"

subtitle_text <- str_glue(
  "**McGwire** was fastest (1,688 games) but linked to PED use. **Babe Ruth** holds the fastest clean record at 1,790 games,<br>",
  "while **Eddie Murray** needed 2,971 games.<br><br>",
  "<span style='color:gray50; font-size:10pt;'>7 of 28 club members have been linked to performance-enhancing drugs (1929–2021)</span>"
)

# Create caption
caption_text <- create_swd_caption(
  year = 2025,
  month = "Dec",
  source_text = "500 HR Club trajectories: Lahman Baseball Database • PED links: ESPN “The Steroids Era”"
)

### |-  fonts ----
setup_fonts()
fonts <- get_font_families()

### |-  plot theme ----
# Start with base theme
base_theme <- create_base_theme(colors)

# Add weekly-specific theme elements
weekly_theme <- extend_weekly_theme(
  base_theme,
  theme(
    # Text styling
    plot.title = element_text(
      face = "bold", family = fonts$title, size = rel(1.4),
      color = colors$palette$title, margin = margin(b = 10), hjust = 0
    ),
    plot.subtitle = element_text(
      family = fonts$subtitle, lineheight = 1.2,
      color = colors$palette$subtitle, size = rel(0.9), margin = margin(b = 20), hjust = 0
    ),

    ## Grid
    panel.grid.major.y = element_blank(),
    panel.grid.minor = element_blank(),
    panel.grid.major.x = element_line(color = "gray90", linewidth = 0.3),

    # Axes
    axis.title = element_text(size = rel(0.9), color = "gray30"),
    axis.text = element_text(color = "gray30"),
    axis.text.y = element_text(size = rel(0.95)),
    axis.ticks = element_blank(),

    # Facets
    strip.background = element_rect(fill = "gray95", color = NA),
    strip.text = element_text(
      face = "bold",
      color = "gray20",
      size = rel(1),
      margin = margin(t = 8, b = 8)
    ),
    panel.spacing = unit(2, "lines"),

    # Legend elements
    legend.position = "plot",
    legend.title = element_text(
      family = fonts$tsubtitle,
      color = colors$palette$text, size = rel(0.8), face = "bold"
    ),
    legend.text = element_text(
      family = fonts$tsubtitle,
      color = colors$palette$text, size = rel(0.7)
    ),
    legend.margin = margin(t = 15),

    # Plot margin
    plot.margin = margin(10, 20, 10, 20)
  )
)

# Set theme
theme_set(weekly_theme)
```

6. Plot

Show code
```{r}
#| label: plot

p <- ggplot(race_data, aes(x = cumulative_G, y = cumulative_HR, group = player_name)) +
  # Geoms
  geom_hline(
    yintercept = 500,
    linetype   = "dashed",
    color      = colors$palette$milestone,
    linewidth  = 0.5
  ) +
  geom_line(
    data = race_data |> filter(player_category == "other"),
    color = colors$palette$others,
    linewidth = 0.5,
    alpha = 0.6
  ) +
  geom_line(
    data = race_data |> filter(player_category == "murray"),
    color = colors$palette$murray,
    linewidth = 1.1
  ) +
  geom_line(
    data = race_data |> filter(player_category == "ruth"),
    color = colors$palette$ruth,
    linewidth = 1.1
  ) +
  geom_line(
    data = race_data |> filter(player_category == "mcgwire"),
    color = colors$palette$mcgwire,
    linewidth = 1.4
  ) +
  # Annotations
  annotate(
    "text",
    x = 1500, y = 545,
    label = "McGwire*\n1,688 games",
    hjust = 0.5, vjust = 0,
    size = 3.6,
    color = colors$palette$mcgwire,
    fontface = "bold"
  ) +
  annotate(
    "text",
    x = 1820, y = 585,
    label = "Ruth\n1,790 games\n(fastest clean)",
    hjust = 0, vjust = 0.5,
    size = 3.3,
    color = colors$palette$ruth,
    fontface = "bold",
    lineheight = 0.9
  ) +
  annotate(
    "text",
    x = 3200, y = 515,
    label = "Murray\n2,971 games\n(slowest)",
    hjust = 1, vjust = 0,
    size = 3.3,
    color = colors$palette$murray,
    fontface = "bold",
    lineheight = 0.9
  ) +
  annotate(
    "text",
    x = 80, y = 515,
    label = "500 HR milestone",
    hjust = 0, vjust = 0,
    size = 3.1,
    color = colors$palette$milestone
  ) +
  # Scales
  scale_x_continuous(
    labels = scales::comma,
    limits = c(0, 3200),
    breaks = seq(0, 3000, 500),
    expand = c(0.02, 0)
  ) +
  scale_y_continuous(
    limits = c(0, 600),
    breaks = seq(0, 500, 100)
  ) +
  coord_cartesian(clip = "off") +
  # Labs
  labs(
    title    = title_text,
    subtitle = subtitle_text,
    caption  = caption_text,
    x        = "Games played",
    y        = "Cumulative home runs"
  ) +
  # Theme
  theme(
    plot.title = element_markdown(
      size = rel(2),
      family = fonts$title,
      face = "bold",
      color = colors$title,
      lineheight = 1.15,
      margin = margin(t = 5, b = 5)
    ),
    plot.subtitle = element_markdown(
      size = rel(0.8),
      family = fonts$subtitle,
      color = alpha(colors$subtitle, 0.88),
      lineheight = 1.3,
      margin = margin(t = 5, b = 20)
    ),
    plot.caption = element_markdown(
      size = rel(0.55),
      family = fonts$subtitle,
      color = colors$caption,
      hjust = 0,
      lineheight = 1.4,
      margin = margin(t = 20, b = 5)
    ),
    axis.title = element_text(size = 10, color = "gray35"),
    axis.text = element_text(size = 9,  color = "gray35")
  )
```

7. Save

Show code
```{r}
#| label: save

### |-  plot image ----
save_plot(
  p,
  type = 'swd',
  year = 2025,
  month = 12,
  width  = 10,
  height = 8,
  )
```

8. Session Info

R version 4.4.1 (2024-06-14 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26100)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices datasets  utils     methods   base

other attached packages:
 [1] here_1.0.1      Lahman_13.0-0   glue_1.8.0      scales_1.3.0
 [5] janitor_2.2.0   showtext_0.9-7  showtextdb_3.0  sysfonts_0.8.9
 [9] ggtext_0.1.2    lubridate_1.9.3 forcats_1.0.0   stringr_1.5.1
[13] dplyr_1.1.4     purrr_1.0.2     readr_2.1.5     tidyr_1.3.1
[17] tibble_3.2.1    ggplot2_3.5.1   tidyverse_2.0.0 pacman_0.5.1

loaded via a namespace (and not attached):
 [1] gtable_0.3.6      xfun_0.49         htmlwidgets_1.6.4 tzdb_0.5.0
 [5] vctrs_0.6.5       tools_4.4.0       generics_0.1.3    curl_6.0.0
 [9] gifski_1.32.0-1   fansi_1.0.6       pkgconfig_2.0.3   lifecycle_1.0.4
[13] compiler_4.4.0    farver_2.1.2      textshaping_0.4.0 munsell_0.5.1
[17] codetools_0.2-20  snakecase_0.11.1  htmltools_0.5.8.1 yaml_2.3.10
[21] pillar_1.9.0      camcorder_0.1.0   magick_2.8.5      commonmark_1.9.2
[25] tidyselect_1.2.1  digest_0.6.37     stringi_1.8.4     rsvg_2.6.1
[29] rprojroot_2.0.4   fastmap_1.2.0     grid_4.4.0        colorspace_2.1-1
[33] cli_3.6.4         magrittr_2.0.3    utf8_1.2.4        withr_3.0.2
[37] timechange_0.3.0  rmarkdown_2.29    ragg_1.3.3        hms_1.1.3
[41] evaluate_1.0.1    knitr_1.49        markdown_1.13     rlang_1.1.6
[45] gridtext_0.1.5    Rcpp_1.0.13-1     xml2_1.3.6        renv_1.0.3
[49] svglite_2.1.3     rstudioapi_0.17.1 jsonlite_1.8.9    R6_2.5.1
[53] systemfonts_1.1.0

9. GitHub Repository

The complete code for this analysis is available in swd_2025_12.qmd. For the full repository, click here.

10. References

Data Sources:

SWD Challenge: - Storytelling with Data: December 2025 - When Less is Better

11. Custom Functions Documentation

This analysis uses custom functions from my personal module library for efficiency and consistency across projects.

Functions Used:

  • fonts.R: setup_fonts(), get_font_families() - Font management with showtext
  • social_icons.R: create_social_caption() - Generates formatted social media captions
  • image_utils.R: save_plot() - Consistent plot saving with naming conventions
  • base_theme.R: create_base_theme(), extend_weekly_theme(), get_theme_colors() - Custom ggplot2 themes

Why custom functions?
These utilities standardize theming, fonts, and output across all my data visualizations. The core analysis (data tidying and visualization logic) uses only standard tidyverse packages.

Source Code:
View all custom functions → GitHub: R/utils
