More Holidays Associated with Lower Air Traffic Volatility in Larger Markets

Higher holiday frequency correlates with reduced traffic volatility, especially in larger markets. Lower CV values indicate more stable traffic patterns

Analysis of global holiday patterns and air traffic volatility reveals that larger markets with more frequent holidays tend to experience more stable passenger traffic patterns. Small markets show positive correlation (r=0.48) while larger markets show progressively decreasing negative correlations, suggesting holidays may help stabilize air traffic in developed markets.

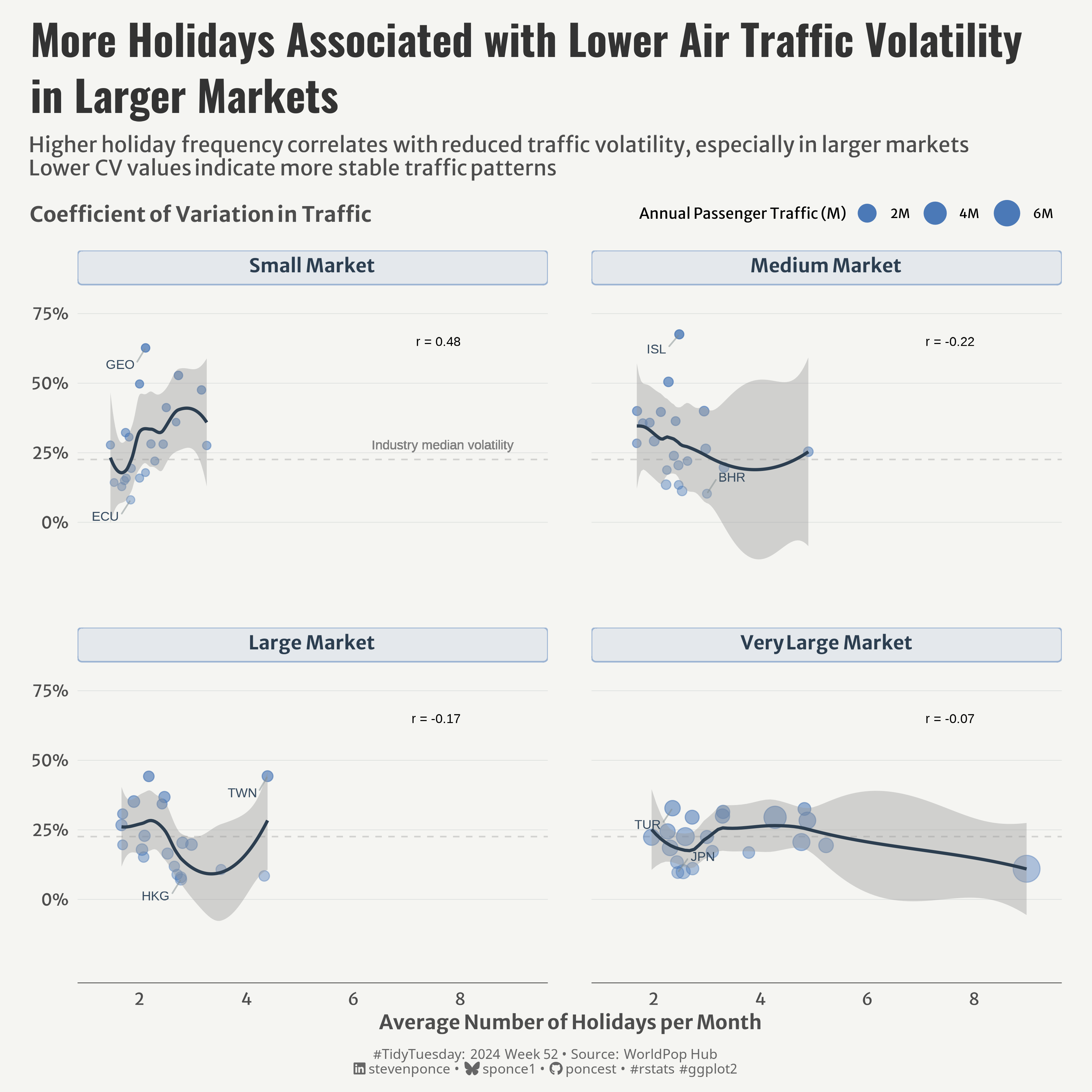

Figure 1: Scatter plot panels show the relationship between average monthly holidays and air traffic volatility (CV) across different market sizes (Small, Medium, Large, Very Large). Larger markets show lower volatility (CV) with more holidays. Data points are sized by annual passenger traffic, with industry median volatility and trend lines highlighted. Source: WorldPop Hub.

Steps to Create this Graphic

1. Load Packages & Setup

## 1. LOAD PACKAGES & SETUP ----
suppressPackageStartupMessages({
pacman::p_load(
    tidyverse,      # Easily Install and Load the 'Tidyverse'
    ggtext,         # Improved Text Rendering Support for 'ggplot2'
    showtext,       # Using Fonts More Easily in R Graphs
    janitor,        # Simple Tools for Examining and Cleaning Dirty Data
    skimr,          # Compact and Flexible Summaries of Data
    scales,         # Scale Functions for Visualization
    glue,           # Interpreted String Literals
    here            # A Simpler Way to Find Your Files
)
})

# Source utility functions
suppressMessages(source(here::here("R/utils/fonts.R")))
source(here::here("R/utils/social_icons.R"))
source(here::here("R/utils/image_utils.R"))
source(here::here("R/themes/base_theme.R"))

2. Read in the Data

# tt <- tidytuesdayR::tt_load(2024, week = 50)
#
# parfumo_data_raw  <- tt$parfumo_data |> clean_names()
#
# tidytuesdayR::readme(tt)
# rm(tt)

# Option 2: Read directly from GitHub
global_holidays_raw <- readr::read_csv(
    'https://raw.githubusercontent.com/rfordatascience/tidytuesday/main/data/2024/2024-12-24/global_holidays.csv') |>
    clean_names()

monthly_passengers_raw <- readr::read_csv(
    'https://raw.githubusercontent.com/rfordatascience/tidytuesday/main/data/2024/2024-12-24/monthly_passengers.csv') |>
    clean_names()

3. Examine the Data

glimpse(global_holidays_raw)
skim(global_holidays_raw)

glimpse(monthly_passengers_raw)
skim(monthly_passengers_raw)

4. Tidy Data

### |- tidy data ----

## Clean and join the datasets ----
monthly_passengers_clean <- monthly_passengers_raw |>
    mutate(
        date = ymd(paste(year, month, "01", sep = "-")),
        total_passengers = coalesce(total, total_os)     # Use total_os when total is NA
    )

monthly_holidays_clean <- global_holidays_raw |>
    mutate(
        year = year(date),
        month = month(date)
    ) |>
    group_by(iso3, year, month) |>
    summarise(
        holiday_count = n(),
        public_holidays = sum(type == "Public holiday"),
        .groups = "drop"
    )

combined_data <- monthly_passengers_clean |>
    left_join(monthly_holidays_clean, by = c("iso3", "year", "month"))

# Housekeeping
rm(global_holidays_raw, monthly_passengers_raw, monthly_holidays_clean, monthly_passengers_clean)


## data plot ---
volatility_df <- combined_data |>
    # Calculate summary statistics by country
    group_by(iso3) |>
    summarise(
        mean_traffic = mean(total_passengers, na.rm = TRUE),
        sd_traffic = sd(total_passengers, na.rm = TRUE),
        cv = sd_traffic / mean_traffic,
        avg_holidays = mean(holiday_count, na.rm = TRUE),
        total_observations = n(),
        traffic_size = sum(total_passengers, na.rm = TRUE),
        .groups = "drop"
    ) |>
    # Remove NA, infinite, or outlier values
    filter(
        complete.cases(cv, avg_holidays),
        total_observations >= 12,              # At least one year of data
        cv >= 0,                               # Ensure no negative coefficients of variation
        cv <= quantile(cv, 0.95, na.rm = TRUE) # Remove extreme outliers
    ) |>
    # Add size categories for visualization
    mutate(
        size_category = cut(
            traffic_size,
            breaks = quantile(traffic_size, probs = seq(0, 1, 0.25), na.rm = TRUE),
            labels = c("Small", "Medium", "Large", "Very Large"),
            include.lowest = TRUE
        )
    )

5. Visualization Parameters

### |-  plot aesthetics ----
# Get base colors with custom palette
colors <- get_theme_colors(palette = c("#4B79B7", "#F8F9FA", "#2C3E50", "#34495E", "#7F8C8D"))

### |-  titles and caption ----
title_text    <- str_glue("More Holidays Associated with Lower Air Traffic Volatility\nin Larger Markets")
subtitle_text <- str_glue("Higher holiday frequency correlates with reduced traffic volatility, especially in larger markets<br>
                          Lower CV values indicate more stable traffic patterns<br><br>
                          **Coefficient of Variation in Traffic**")

# Create caption
caption_text <- create_social_caption(
    tt_year = 2024,
    tt_week = 52,
    source_text = "WorldPop Hub"
)

### |-  fonts ----
setup_fonts()
fonts <- get_font_families()

### |-  plot theme ----

# Start with base theme
base_theme <- create_base_theme(colors)

# Add weekly-specific theme elements
weekly_theme <- extend_weekly_theme(
    base_theme,
    theme(
        # Weekly-specific modifications
        axis.line.x           = element_line(color = "#252525", linewidth = .2),

        panel.spacing.x       = unit(2, 'lines'),
        panel.spacing.y       = unit(1, 'lines'),
        panel.grid.major.x    = element_blank(),
        panel.grid.major.y    = element_line(color = alpha(colors$palette[5], 0.2), linewidth = 0.2),
        panel.grid.minor      = element_blank(),

        strip.text            = element_textbox(
            size              = rel(0.9),
            face              = 'bold',
            color             = colors$palette[3],
            fill              = alpha(colors$palette[1], 0.1),
            box.color         = alpha(colors$palette[1], 0.5),
            halign            = 0.5,
            linetype          = 1,
            r                 = unit(3, "pt"),
            width             = unit(1, "npc"),
            padding           = margin(5, 10, 5, 10),
            margin            = margin(b = 10)
        ),

        legend.margin         = margin(-25, 5, 0, 0), # align the legend with the y-axis label
        legend.position       = "top",
        legend.title          = element_text(size = rel(0.7)),
        legend.text           = element_text(size = rel(0.6)),
        legend.justification.top = "right",
    )
)

# Set theme
theme_set(weekly_theme)

6. Plot

### |-  Plot ----
p <- ggplot(volatility_df, aes(x = avg_holidays, y = cv)) +
    # Add reference line for overall median
    geom_hline(
        yintercept = median(volatility_df$cv),
        linetype = "dashed",
        color = "gray50",
        alpha = 0.3
    ) +
    # Add points
    geom_point(
        aes(
            size = traffic_size,
            alpha = cv  # Vary transparency by CV
        ),
        color = colors$palette[1]
    ) +
    # Add trend line
    geom_smooth(
        color = colors$palette[3],
        method = "loess",
        linewidth = 1,
        se = TRUE
    ) +
    # Add labels for extreme points (cv)
    ggrepel::geom_text_repel(
        data = volatility_df |>
            group_by(size_category) |>
            filter(cv == max(cv) | cv == min(cv)),
        aes(label = iso3),
        size = 3,
        color = colors$palette[4],
        max.overlaps = 2,
        box.padding = 0.5,
        segment.color = colors$palette[5],
        segment.alpha = 0.5
    ) +
    # Add single annotation for the median line
    geom_text(
        data = volatility_df |> filter(size_category == "Small"),
        x = 9,
        y = median(volatility_df$cv) + 0.02,
        label = "Industry median volatility",
        size = 3,
        color = "gray50",
        hjust = 1,
        vjust = -0.5
    ) +
    # Add correlation annotation in each facet
    geom_text(
        data = volatility_df |>
            group_by(size_category) |>
            summarise(
                cor = cor(avg_holidays, cv),
                .groups = "drop"
            ),
        aes(x = 8, y = 0.65,
            label = sprintf("r = %.2f", cor)),
        size = 3,
        hjust = 1
    ) +

    # Scales
    scale_y_continuous(
        breaks = seq(0, 1, by = .25),
        limits = c(-.25, .75),
        labels = percent_format()
    ) +
    scale_x_continuous(
        breaks = seq(2, 8, by = 2),
        limits = c(1, 9),
        expand = expansion(mult = c(0.02, 0.08))
    ) +
    scale_size_continuous(
        range = c(2, 8),
        labels = scales::label_number(scale = 1e-6, suffix = "M")
    ) +
    scale_alpha_continuous(
        range = c(0.4, 0.8),
        guide = "none"
    ) +
    # Labs
    labs(
        x = "Average Number of Holidays per Month",
        y = NULL,
        size  = "Annual Passenger Traffic (M)",
        color = "Market Size",
        title    = title_text,
        subtitle = subtitle_text,
        caption  = caption_text
    ) +
    # Facets
    facet_wrap(
        ~size_category,
        labeller = as_labeller(function(x) paste(x, "Market")),
        scales = "fixed"
    ) +
    # Theme
    theme(
        plot.title = element_text(
            size   = rel(2),
            family = fonts$title,
            face   = "bold",
            color  = colors$title,
            lineheight = 1.1,
            margin = margin(t = 5, b = 5)
        ),
        plot.subtitle = element_markdown(
            size   = rel(1),
            family = fonts$subtitle,
            color  = colors$subtitle,
            lineheight = 1.1,
            margin = margin(t = 5, b = 5)
        ),
        plot.caption = element_markdown(
            family = fonts$caption,
            size   = rel(0.65),
            color  = colors$caption,
            hjust  = 0.5,
            margin = margin(t = 10)
        )
    )

7. Save

### |-  plot image ----

save_plot(p, type = "tidytuesday",
          year = 2024, week = 52, width = 10, height = 10)

8. Session Info

Expand for Session Info

R version 4.4.1 (2024-06-14 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 22631)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices datasets  utils     methods   base

other attached packages:
 [1] gghighlight_0.4.1 marquee_0.1.0     patchwork_1.3.0   camcorder_0.1.0
 [5] here_1.0.1        glue_1.8.0        scales_1.3.0      skimr_2.1.5
 [9] janitor_2.2.0     showtext_0.9-7    showtextdb_3.0    sysfonts_0.8.9
[13] ggtext_0.1.2      lubridate_1.9.3   forcats_1.0.0     stringr_1.5.1
[17] dplyr_1.1.4       purrr_1.0.2       readr_2.1.5       tidyr_1.3.1
[21] tibble_3.2.1      ggplot2_3.5.1     tidyverse_2.0.0

loaded via a namespace (and not attached):
 [1] gtable_0.3.6       xfun_0.49          htmlwidgets_1.6.4  tzdb_0.4.0
 [5] yulab.utils_0.1.8  vctrs_0.6.5        tools_4.4.0        generics_0.1.3
 [9] curl_6.0.0         parallel_4.4.0     gifski_1.32.0-1    fansi_1.0.6
[13] pacman_0.5.1       pkgconfig_2.0.3    ggplotify_0.1.2    lifecycle_1.0.4
[17] compiler_4.4.0     farver_2.1.2       textshaping_0.4.0  munsell_0.5.1
[21] repr_1.1.7         codetools_0.2-20   snakecase_0.11.1   htmltools_0.5.8.1
[25] yaml_2.3.10        crayon_1.5.3       pillar_1.9.0       magick_2.8.5
[29] commonmark_1.9.2   tidyselect_1.2.1   digest_0.6.37      stringi_1.8.4
[33] rsvg_2.6.1         rprojroot_2.0.4    fastmap_1.2.0      grid_4.4.0
[37] colorspace_2.1-1   cli_3.6.3          magrittr_2.0.3     base64enc_0.1-3
[41] utf8_1.2.4         withr_3.0.2        bit64_4.5.2        timechange_0.3.0
[45] rmarkdown_2.29     bit_4.5.0          hms_1.1.3          evaluate_1.0.1
[49] knitr_1.49         markdown_1.13      gridGraphics_0.5-1 rlang_1.1.4
[53] gridtext_0.1.5     Rcpp_1.0.13-1      xml2_1.3.6         renv_1.0.3
[57] vroom_1.6.5        svglite_2.1.3      rstudioapi_0.17.1  jsonlite_1.8.9
[61] R6_2.5.1           fs_1.6.5           systemfonts_1.1.0

9. GitHub Repository

Expand for GitHub Repo

The complete code for this analysis is available in tt_2024_52.qmd.

For the full repository, click here.
