Where Does $7 Trillion Go?

U.S. federal outlays, FY2025 — 100 squares represent about $7.0T (≈ $70B each). Total spending: $7.0T | Deficit: $1.8T

A waffle chart breaking down U.S. federal outlays for fiscal year 2025 into 100 equal squares, each representing approximately $70 billion of the $7.0 trillion total. Social Security, Medicare, and Net Interest alone account for nearly half of all spending, while the federal deficit reached $1.8 trillion — the largest categories visualized through a part-to-whole composition. Built with ggplot2 in R using CBO data.

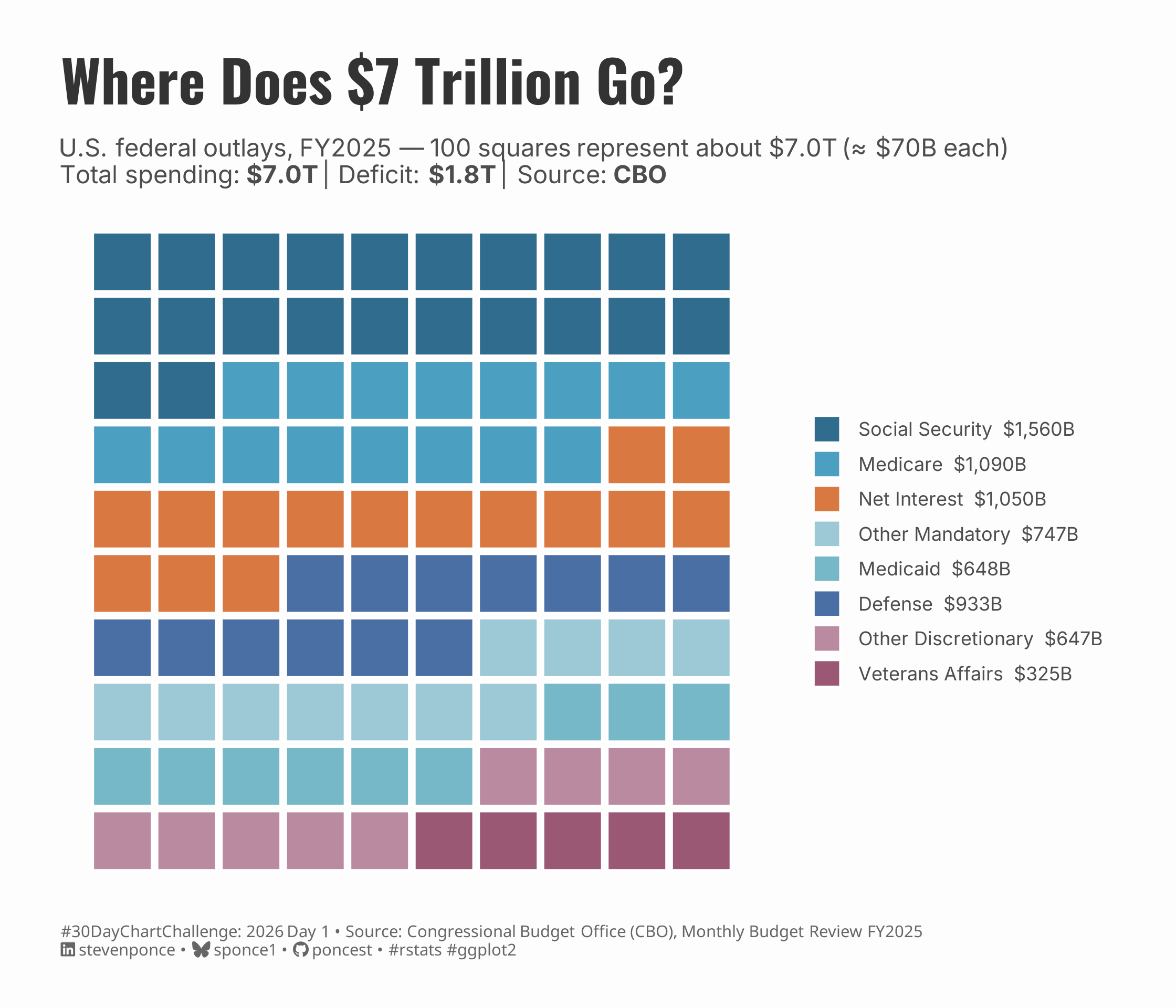

Figure 1: Waffle chart showing U.S. federal spending for fiscal year 2025, with 100 equal squares representing approximately $70 billion each, totaling $7.0 trillion. Social Security is the largest category at $1,560 billion (22 squares), followed by Medicare at $1,090 billion, Net Interest at $1,050 billion, Defense at $933 billion, Other Mandatory at $747 billion, Medicaid at $648 billion, Other Discretionary at $647 billion, and Veterans Affairs at $325 billion. The federal deficit was $1.8 trillion. Data source: Congressional Budget Office, Monthly Budget Review FY2025

Steps to Create this Graphic

1. Load Packages & Setup

```{r}
#| label: load
#| warning: false
#| message: false
#| results: "hide"

## 1. LOAD PACKAGES & SETUP ----
suppressPackageStartupMessages({
pacman::p_load(
  tidyverse, ggtext, showtext,
  janitor, scales, glue
  )
})

### |- figure size ----
camcorder::gg_record(
  dir    = here::here("temp_plots"),
  device = "png",
  width  = 7,
  height = 6,
  units  = "in",
  dpi    = 320
)

# Source utility functions
suppressMessages(source(here::here("R/utils/fonts.R")))
source(here::here("R/utils/social_icons.R"))
source(here::here("R/utils/image_utils.R"))
source(here::here("R/themes/base_theme.R"))
```

2. Read in the Data

```{r}
#| label: read
#| include: true
#| eval: true
#| warning: false

# FY2025 actual federal outlays (billions USD)
# Source: CBO Monthly Budget Review, October 2025 (fiscal year end)
# Total outlays: ~$7.0 trillion | Deficit: $1.8 trillion
#
# Key verified figures (CBO + CRFB reconciliation):
#   Social Security: FY2024 $1,439B + $121B increase = ~$1,560B
#   Medicare:        FY2024 ~$973B  + $117B increase = ~$1,090B  (net of offsetting receipts)
#   Net Interest:    Surpassed $1T for first time; FY2024 ~$970B + $80B = ~$1,050B
#   Defense:         FY2024 ~$895B  + $38B  increase = ~$933B
#   Medicaid:        FY2024 ~$596B  + $52B  increase = ~$648B
#   Veterans Affairs:FY2024 ~$284B  + $41B  increase = ~$325B
#   Other Mandatory + Other Discretionary: residual to $7,000B total
#   Residual = 7000 - (1560+1090+1050+933+648+325) = ~$1,394B split below
spending_raw <- tibble(
  category = c(
    "Social Security",
    "Medicare",
    "Net Interest",
    "Defense",
    "Medicaid",
    "Other Mandatory",
    "Other Discretionary",
    "Veterans Affairs"
  ),
  billions = c(1560, 1090, 1050, 933, 648, 747, 647, 325)
)
```

3. Examine the Data

```{r}
#| label: examine
#| include: true
#| eval: true
#| results: 'hide'
#| warning: false

glimpse(spending_raw)
```

4. Tidy Data

```{r}
#| label: tidy
#| warning: false

spending <- spending_raw |>
  mutate(
    # Calculate percentage share of total
    pct       = billions / sum(billions),
    pct_label = percent(pct, accuracy = 0.1),

    # Waffle units: 1 unit = ~$70B (so 100 squares = ~$7T)
    units = round(billions / 70),

    # Spending type — for secondary grouping / color logic
    type = case_when(
      category %in% c("Social Security", "Medicare", "Medicaid", "Other Mandatory") ~ "Mandatory",
      category == "Net Interest" ~ "Net Interest",
      category %in% c("Defense", "Veterans Affairs", "Other Discretionary") ~ "Discretionary"
    ),

    category = factor(category, levels = c(
      "Social Security",
      "Medicare",
      "Net Interest",
      "Other Mandatory",
      "Medicaid",
      "Defense",
      "Other Discretionary",
      "Veterans Affairs"
    ))
  )

# Expand for waffle — each row = one square
waffle_data <- spending |>
  arrange(desc(billions)) |>
  uncount(units) |>
  mutate(
    row_id = row_number(),
    x      = (row_id - 1) %% 10 + 1,
    y      = 10 - ((row_id - 1) %/% 10)
  )

# Total squares
total_squares <- sum(spending$units)  # ~100

### |- legend labels ----
legend_labels <- spending |>
  arrange(category) |>
  mutate(
    label = glue("{category}  ${scales::comma(billions)}B")
  ) |>
  pull(label, name = category)
```

5. Visualization Parameters

```{r}
#| label: params
#| include: true
#| warning: false

### |-  plot aesthetics ----
colors <- get_theme_colors(
   palette = c(
    "Social Security"     = "#2F6C8E",
    "Medicare"            = "#4B9FC0",
    "Net Interest"        = "#D97941",
    "Defense"             = "#4A6FA5",
    "Medicaid"            = "#76B8C8",
    "Other Mandatory"     = "#9CC9D5",
    "Other Discretionary" = "#B98AA0",
    "Veterans Affairs"    = "#9A5874"
  )
)

### |- titles and caption ----
title_text <- str_glue("Where Does $7 Trillion Go?")

subtitle_text <- str_glue(
  "U.S. federal outlays, FY2025 — {total_squares} squares represent about $7.0T (≈ $70B each)<br>",
  "Total spending: **$7.0T** | Deficit: **$1.8T** | Source: **CBO**"
)

caption_text <- create_dcc_caption(
  dcc_year = 2026,
  dcc_day = 01,
  source_text = "Congressional Budget Office (CBO), Monthly Budget Review FY2025"
)

### |- fonts ----
setup_fonts()
fonts <- get_font_families()

### |-  plot theme ----
base_theme <- create_base_theme(colors)

weekly_theme <- extend_weekly_theme(
  base_theme,
  theme(
    # Axes
    axis.text = element_blank(),
    axis.title = element_blank(),
    axis.ticks = element_blank(),

    # Grid — none needed for waffle
    panel.grid = element_blank(),

    # Legend
    legend.position = "right",
    legend.direction = "vertical",
    legend.title = element_text(
      size = 9, face = "bold", family = fonts$text, color = colors$text
    ),
    legend.text = element_text(
      size = 8, family = fonts$text, color = colors$text
    ),
    legend.key.size = unit(0.9, "lines"),
    legend.key.spacing.y = unit(2, "pt"),
    plot.margin = margin(20, 20, 16, 20)
  )
)

theme_set(weekly_theme)
```

6. Plot

```{r}
#| label: plot
#| warning: false

### |- main plot ----
p <-
  ggplot(waffle_data, aes(x = x, y = y, fill = category)) +
  # Geoms
  geom_tile(
    color     = "white",
    linewidth = 0.5,
    width     = 0.92,
    height    = 0.92
  ) +
  # Scales
  scale_fill_manual(
    values = unlist(colors$palette),
    labels = legend_labels,
    name   = NULL
  ) +
  # Scales
  scale_x_continuous(expand = expansion(add = 0.5)) +
  scale_y_continuous(expand = expansion(add = 0.5)) +
  coord_equal() +
  # Labs
  labs(
    title    = title_text,
    subtitle = subtitle_text,
    caption  = caption_text
  ) +
  # Theme
  theme(
    plot.title = element_text(
      size = rel(1.75),
      family = fonts$title,
      face = "bold",
      color = colors$title,
      margin = margin(t = 5, b = 5)
    ),
    plot.subtitle = element_markdown(
      size = rel(0.75),
      family = fonts$subtitle,
      color = colors$subtitle,
      lineheight = 1.1,
      margin = margin(t = 5, b = 5)
    ),
    plot.caption = element_markdown(
      size = rel(0.5),
      family = fonts$caption,
      color = colors$caption,
      lineheight = 1.1,
      hjust = 0,
      halign = 0,
      margin = margin(t = 10, b = 5)
    ),
  )
```

7. Save

```{r}
#| label: save
#| warning: false

### |-  plot image ----
save_plot(
  p,
  type = "30daychartchallenge",
  year = 2026,
  day = 01,
  width = 7,
  height = 6
  )
```

8. Session Info

TipExpand for Session Info

R version 4.3.1 (2023-06-16 ucrt)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 11 x64 (build 26100)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] here_1.0.2      glue_1.8.0      scales_1.4.0    janitor_2.2.1
 [5] showtext_0.9-7  showtextdb_3.0  sysfonts_0.8.9  ggtext_0.1.2
 [9] lubridate_1.9.5 forcats_1.0.1   stringr_1.6.0   dplyr_1.2.0
[13] purrr_1.2.1     readr_2.2.0     tidyr_1.3.2     tibble_3.2.1
[17] ggplot2_4.0.2   tidyverse_2.0.0

loaded via a namespace (and not attached):
 [1] gtable_0.3.6       xfun_0.56          htmlwidgets_1.6.4  tzdb_0.5.0
 [5] vctrs_0.7.1        tools_4.3.1        generics_0.1.4     curl_7.0.0
 [9] gifski_1.32.0-2    pacman_0.5.1       pkgconfig_2.0.3    RColorBrewer_1.1-3
[13] S7_0.2.0           lifecycle_1.0.5    compiler_4.3.1     farver_2.1.2
[17] textshaping_1.0.4  codetools_0.2-19   snakecase_0.11.1   litedown_0.9
[21] htmltools_0.5.9    yaml_2.3.12        pillar_1.11.1      camcorder_0.1.0
[25] magick_2.8.6       commonmark_2.0.0   tidyselect_1.2.1   digest_0.6.39
[29] stringi_1.8.7      labeling_0.4.3     rsvg_2.6.2         rprojroot_2.1.1
[33] fastmap_1.2.0      grid_4.3.1         cli_3.6.5          magrittr_2.0.3
[37] withr_3.0.2        timechange_0.4.0   rmarkdown_2.30     otel_0.2.0
[41] ragg_1.5.0         hms_1.1.4          evaluate_1.0.5     knitr_1.51
[45] markdown_2.0       rlang_1.1.7        gridtext_0.1.6     Rcpp_1.1.1
[49] xml2_1.5.2         svglite_2.1.3      rstudioapi_0.18.0  jsonlite_2.0.0
[53] R6_2.6.1           systemfonts_1.3.2

9. GitHub Repository

TipExpand for GitHub Repo

The complete code for this analysis is available in 30dcc_2026_01.qmd.

For the full repository, click here.

10. References

TipExpand for References

1. Data Sources:
   • Congressional Budget Office (CBO). (2025). Monthly Budget Review: Summary for Fiscal Year 2025. Retrieved from https://www.cbo.gov/publication/61307
