The Energy Transition Is Uneven

High-income countries generate a large share of the world’s electricity with a more diversified mix, while upper-middle-income countries still contain the largest fossil block globally. Income groups use World Bank 2022 classifications.

30DayChartChallenge
2026
Mosaic chart exploring how electricity generation sources vary across World Bank income groups in 2022. Upper-middle-income countries — led by China — produce the largest share of global electricity, with fossil fuels dominating their mix. High-income countries show a more diversified portfolio including nuclear, wind, and solar. Built with R, ggplot2, and ggmosaic.
Author

Steven Ponce

Published

April 3, 2026

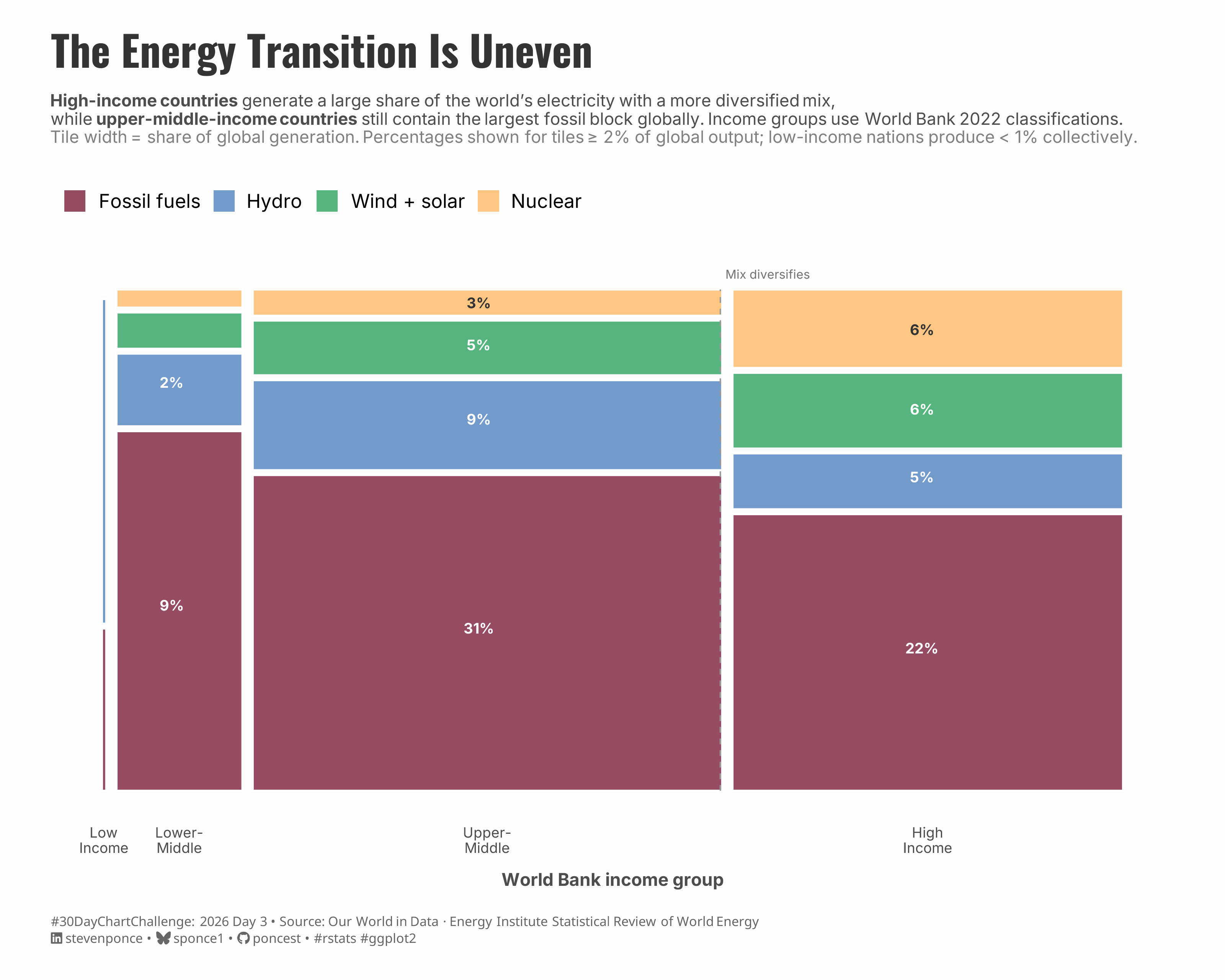

Figure 1: Mosaic chart showing electricity generation mix by World Bank income group in 2022. Tile width represents each group’s share of global output; tile height shows the energy source mix within that group. Upper-middle-income countries — dominated by China — produce the largest share of global electricity at roughly 48%, with fossil fuels accounting for 31% of global output alone. A dashed vertical line marks the boundary between upper-middle and high-income countries, where the energy mix meaningfully diversifies. High-income countries account for about 39% of global production, with notable shares in wind, solar, hydro, and nuclear. Lower-middle-income countries produce around 12%, still heavily fossil-dependent. Low-income nations collectively produce less than 1% of global electricity and are noted with an annotation. Data source: Our World in Data, Energy Institute Statistical Review of World Energy.

Steps to Create this Graphic

1. Load Packages & Setup

Show code
```{r}
#| label: load
#| warning: false
#| message: false
#| results: "hide"

## 1. LOAD PACKAGES & SETUP ----
suppressPackageStartupMessages({
pacman::p_load(
  tidyverse, ggtext, showtext,
  janitor, scales, glue, ggmosaic
  )
})

### |- figure size ----
camcorder::gg_record(
  dir    = here::here("temp_plots"),
  device = "png",
  width  = 10,
  height = 8,
  units  = "in",
  dpi    = 320
)

# Source utility functions
suppressMessages(source(here::here("R/utils/fonts.R")))
source(here::here("R/utils/social_icons.R"))
source(here::here("R/utils/image_utils.R"))
source(here::here("R/themes/base_theme.R"))
```

2. Read in the Data

Show code
```{r}
#| label: read
#| include: true
#| eval: true
#| warning: false

### |- OWID energy data ----
# Download: https://raw.githubusercontent.com/owid/energy-data/master/owid-energy-data.csv
energy_raw <- read_csv(
  here::here("data/30DayChartChallenge/2026/owid-energy-data.csv")
)

### |- World Bank income classification ----
# Source: World Bank Country and Lending Groups (FY2024)
# Full list: https://datahelpdesk.worldbank.org/knowledgebase/articles/906519
# Download:  https://databank.worldbank.org/data/download/site-content/CLASS.xlsx
# Note: Subset of ~130 major electricity-producing countries used here.
#       Join key: wb_income$country → energy_2022$country

### |- World Bank income classification ----
wb_income <- tribble(
  ~country,                       ~income_group,
  # Low income
  "Afghanistan",                  "Low income",
  "Burkina Faso",                 "Low income",
  "Burundi",                      "Low income",
  "Central African Republic",     "Low income",
  "Chad",                         "Low income",
  "Democratic Republic of Congo", "Low income",
  "Eritrea",                      "Low income",
  "Ethiopia",                     "Low income",
  "Guinea",                       "Low income",
  "Guinea-Bissau",                "Low income",
  "Liberia",                      "Low income",
  "Madagascar",                   "Low income",
  "Malawi",                       "Low income",
  "Mali",                         "Low income",
  "Mozambique",                   "Low income",
  "Niger",                        "Low income",
  "Rwanda",                       "Low income",
  "Sierra Leone",                 "Low income",
  "Somalia",                      "Low income",
  "South Sudan",                  "Low income",
  "Sudan",                        "Low income",
  "Syria",                        "Low income",
  "Togo",                         "Low income",
  "Uganda",                       "Low income",
  "Yemen",                        "Low income",
  "Zimbabwe",                     "Low income",
  # Lower-middle income
  "Bangladesh",                   "Lower-middle income",
  "Bolivia",                      "Lower-middle income",
  "Cambodia",                     "Lower-middle income",
  "Cameroon",                     "Lower-middle income",
  "Congo",                        "Lower-middle income",
  "Cote d'Ivoire",                "Lower-middle income",
  "Egypt",                        "Lower-middle income",
  "El Salvador",                  "Lower-middle income",
  "Ghana",                        "Lower-middle income",
  "Haiti",                        "Lower-middle income",
  "Honduras",                     "Lower-middle income",
  "India",                        "Lower-middle income",
  "Indonesia",                    "Lower-middle income",
  "Kenya",                        "Lower-middle income",
  "Kyrgyzstan",                   "Lower-middle income",
  "Laos",                         "Lower-middle income",
  "Lesotho",                      "Lower-middle income",
  "Mauritania",                   "Lower-middle income",
  "Morocco",                      "Lower-middle income",
  "Myanmar",                      "Lower-middle income",
  "Nepal",                        "Lower-middle income",
  "Nicaragua",                    "Lower-middle income",
  "Nigeria",                      "Lower-middle income",
  "Pakistan",                     "Lower-middle income",
  "Papua New Guinea",             "Lower-middle income",
  "Philippines",                  "Lower-middle income",
  "Senegal",                      "Lower-middle income",
  "Sri Lanka",                    "Lower-middle income",
  "Tanzania",                     "Lower-middle income",
  "Tunisia",                      "Lower-middle income",
  "Ukraine",                      "Lower-middle income",
  "Uzbekistan",                   "Lower-middle income",
  "Vietnam",                      "Lower-middle income",
  "Zambia",                       "Lower-middle income",
  # Upper-middle income
  "Albania",                      "Upper-middle income",
  "Algeria",                      "Upper-middle income",
  "Argentina",                    "Upper-middle income",
  "Armenia",                      "Upper-middle income",
  "Azerbaijan",                   "Upper-middle income",
  "Belarus",                      "Upper-middle income",
  "Belize",                       "Upper-middle income",
  "Bosnia and Herzegovina",       "Upper-middle income",
  "Botswana",                     "Upper-middle income",
  "Brazil",                       "Upper-middle income",
  "Bulgaria",                     "Upper-middle income",
  "China",                        "Upper-middle income",
  "Colombia",                     "Upper-middle income",
  "Costa Rica",                   "Upper-middle income",
  "Cuba",                         "Upper-middle income",
  "Dominican Republic",           "Upper-middle income",
  "Ecuador",                      "Upper-middle income",
  "Equatorial Guinea",            "Upper-middle income",
  "Fiji",                         "Upper-middle income",
  "Gabon",                        "Upper-middle income",
  "Georgia",                      "Upper-middle income",
  "Guatemala",                    "Upper-middle income",
  "Iran",                         "Upper-middle income",
  "Iraq",                         "Upper-middle income",
  "Jamaica",                      "Upper-middle income",
  "Jordan",                       "Upper-middle income",
  "Kazakhstan",                   "Upper-middle income",
  "Kosovo",                       "Upper-middle income",
  "Libya",                        "Upper-middle income",
  "Malaysia",                     "Upper-middle income",
  "Maldives",                     "Upper-middle income",
  "Mexico",                       "Upper-middle income",
  "Moldova",                      "Upper-middle income",
  "Montenegro",                   "Upper-middle income",
  "Namibia",                      "Upper-middle income",
  "North Macedonia",              "Upper-middle income",
  "Paraguay",                     "Upper-middle income",
  "Peru",                         "Upper-middle income",
  "Russia",                       "Upper-middle income",
  "Serbia",                       "Upper-middle income",
  "South Africa",                 "Upper-middle income",
  "Thailand",                     "Upper-middle income",
  "Turkmenistan",                 "Upper-middle income",
  "Turkey",                       "Upper-middle income",
  "Venezuela",                    "Upper-middle income",
  # High income
  "Australia",                    "High income",
  "Austria",                      "High income",
  "Bahrain",                      "High income",
  "Belgium",                      "High income",
  "Canada",                       "High income",
  "Chile",                        "High income",
  "Croatia",                      "High income",
  "Cyprus",                       "High income",
  "Czech Republic",               "High income",
  "Denmark",                      "High income",
  "Estonia",                      "High income",
  "Finland",                      "High income",
  "France",                       "High income",
  "Germany",                      "High income",
  "Greece",                       "High income",
  "Hungary",                      "High income",
  "Iceland",                      "High income",
  "Ireland",                      "High income",
  "Israel",                       "High income",
  "Italy",                        "High income",
  "Japan",                        "High income",
  "South Korea",                  "High income",
  "Kuwait",                       "High income",
  "Latvia",                       "High income",
  "Lithuania",                    "High income",
  "Luxembourg",                   "High income",
  "Malta",                        "High income",
  "Netherlands",                  "High income",
  "New Zealand",                  "High income",
  "Norway",                       "High income",
  "Oman",                         "High income",
  "Poland",                       "High income",
  "Portugal",                     "High income",
  "Qatar",                        "High income",
  "Romania",                      "High income",
  "Saudi Arabia",                 "High income",
  "Singapore",                    "High income",
  "Slovakia",                     "High income",
  "Slovenia",                     "High income",
  "Spain",                        "High income",
  "Sweden",                       "High income",
  "Switzerland",                  "High income",
  "Trinidad and Tobago",          "High income",
  "United Arab Emirates",         "High income",
  "United Kingdom",               "High income",
  "United States",                "High income",
  "Uruguay",                      "High income"
)
```

3. Examine the Data

Show code
```{r}
#| label: examine
#| include: true
#| eval: true
#| results: 'hide'
#| warning: false

glimpse(energy_raw)
```

4. Tidy Data

Show code
```{r}
#| label: tidy
#| warning: false

### |- Filter to 2022 and relevant columns ----
energy_2022 <- energy_raw |>
  filter(year == 2022) |>
  select(
    country,
    coal_electricity, oil_electricity, gas_electricity,
    hydro_electricity, wind_electricity, solar_electricity,
    nuclear_electricity
  ) |>
  filter(!str_detect(
    country,
    "World|Africa|Asia|Europe|America|OECD|income|Non-OECD|Asia Pacific|Middle East|CIS|G20|European Union|High-income|Low-income|Lower-middle|Upper-middle|OPEC|Eurasia"
  ))

### |- Join World Bank income classification ----
energy_income <- energy_2022 |>
  inner_join(wb_income, by = "country")

### |- Compute energy source totals per country ----
energy_sources <- energy_income |>
  mutate(
    fossil            = coal_electricity + oil_electricity + gas_electricity,
    hydro             = hydro_electricity,
    modern_renewables = wind_electricity + solar_electricity,
    nuclear           = nuclear_electricity
  ) |>
  select(country, income_group, fossil, hydro, modern_renewables, nuclear) |>
  mutate(across(fossil:nuclear, ~ replace_na(.x, 0)))

### |- Pivot to long format ----
energy_long <- energy_sources |>
  pivot_longer(
    cols      = fossil:nuclear,
    names_to  = "source",
    values_to = "twh"
  )

### |- Factor ordering ----
income_order <- c(
  "Low income", "Lower-middle income",
  "Upper-middle income", "High income"
)
source_order <- c("fossil", "hydro", "modern_renewables", "nuclear")

### |- Aggregate to income group level ----
energy_agg <- energy_long |>
  mutate(
    income_group = factor(income_group, levels = income_order),
    source       = factor(source, levels = source_order)
  ) |>
  group_by(income_group, source) |>
  summarise(total_twh = sum(twh), .groups = "drop") |>
  tidyr::complete(income_group, source, fill = list(total_twh = 0)) |>
  group_by(income_group) |>
  mutate(
    group_total = sum(total_twh),
    share       = if_else(group_total > 0, total_twh / group_total, 0)
  ) |>
  ungroup()

### |- Pre-compute tile coordinates for manual labels ----
group_totals <- energy_agg |>
  distinct(income_group, group_total) |>
  arrange(income_group) |>
  mutate(
    grand_total = sum(group_total),
    x_width     = group_total / grand_total,
    x_max       = cumsum(x_width),
    x_min       = x_max - x_width,
    x_mid       = (x_min + x_max) / 2
  )

grand_total <- sum(group_totals$group_total)

low_income_xmax <- group_totals |>
  filter(income_group == "Low income") |>
  pull(x_max)

upper_middle_xmax <- group_totals |>
  filter(income_group == "Upper-middle income") |>
  pull(x_max)

tile_coords <- energy_agg |>
  arrange(income_group, source) |>
  group_by(income_group) |>
  mutate(
    y_max = cumsum(share),
    y_min = y_max - share,
    y_mid = (y_min + y_max) / 2
  ) |>
  ungroup() |>
  left_join(
    group_totals |> select(income_group, x_min, x_max, x_mid, x_width),
    by = "income_group"
  ) |>
  mutate(
    global_share = group_total / grand_total * share,
    label        = if_else(global_share >= 0.018,
                           percent(global_share, accuracy = 1), ""),
    label_color  = if_else(source == "nuclear", "gray20", "white")
  )

### |- Plot data ----
set.seed(2026)
mosaic_data <- energy_agg |>
  mutate(units = round(total_twh / 10)) |>
  filter(units > 0) |>
  uncount(units)
```

5. Visualization Parameters

Show code
```{r}
#| label: params
#| include: true
#| warning: false

### |- plot aesthetics ----
colors <- get_theme_colors(
  palette = c(
    "fossil"            = "#7A1E3A",
    "hydro"             = "#4F81BD",
    "modern_renewables" = "#2CA25F",
    "nuclear"           = "#FDB863"
  )
)

### |- titles and caption ----
title_text <- str_glue("The Energy Transition Is Uneven")

subtitle_text <- str_glue(
  "**High-income countries** generate a large share of the world's electricity with a more diversified mix,<br>",
  "while **upper-middle-income countries** still contain the largest fossil block globally. ",
  "Income groups use World Bank 2022 classifications.<br>",
  "<span style='color:#808080;'>Tile width = share of global generation. ",
  "Percentages shown for tiles ≥ 2% of global output; low-income nations produce < 1% collectively.</span>"
)

caption_text <- create_dcc_caption(
  dcc_year    = 2026,
  dcc_day     = 03,
  source_text = "Our World in Data · Energy Institute Statistical Review of World Energy"
)

### |- fonts ----
setup_fonts()
fonts <- get_font_families()

### |-  plot theme ----
base_theme <- create_base_theme(colors)

weekly_theme <- extend_weekly_theme(
  base_theme,
  theme(
    plot.title = element_text(
      face = "bold", family = fonts$title, color = colors$title,
      size = rel(1.75), margin = margin(b = 6)
    ),
    plot.subtitle = element_markdown(
      family = fonts$subtitle, size = rel(0.70), color = colors$subtitle,
      lineheight = 1.1, margin = margin(t = 5, b = 18)
    ),
    plot.caption = element_markdown(
      family = fonts$caption, , size = rel(0.55), color = colors$caption,
      margin = margin(t = 16), hjust = 0, lineheight = 1.3,
    ),

    # Legend
    legend.position = "top",
    legend.justification = "left",
    legend.title = element_blank(),
    legend.text = element_text(family = fonts$text, size = rel(0.8)),
    legend.key.size = unit(0.5, "cm"),
    legend.spacing.x = unit(0.35, "cm"),

    # Axes
    axis.title.x = element_text(
      family = fonts$text, size = rel(0.8),
      margin = margin(t = 10), color = "gray30"
    ),
    axis.title.y = element_blank(),
    axis.text.x = element_text(
      family = fonts$text, size = rel(0.75), color = "gray30"
    ),
    axis.text.y = element_blank(),
    axis.ticks = element_blank(),

    # Panel
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank(),
    panel.border = element_blank(),
    plot.margin = margin(20, 30, 20, 30)
  )
)

theme_set(weekly_theme)
```

6. Plot

Show code
```{r}
#| label: plot
#| warning: false

### |- main plot ----
set.seed(2026)

p <- ggplot(mosaic_data) +
  # Geoms
  geom_mosaic(
    aes(
      x    = product(source, income_group),
      fill = source
    ),
    color     = "white",
    linewidth = 0.6,
    na.rm     = TRUE
  ) +
  geom_text(
    data        = tile_coords |> filter(label != ""),
    aes(x = x_mid, y = y_mid, label = label, color = label_color),
    size        = 3,
    fontface    = "bold",
    inherit.aes = FALSE
  ) +
  # Annotate
  annotate(
    "segment",
    x    = upper_middle_xmax,
    xend = upper_middle_xmax,
    y    = 0,
    yend = 1,
    color     = "gray60",
    linewidth = 0.4,
    linetype  = "dashed"
  ) +
  annotate(
    "text",
    x     = upper_middle_xmax + 0.005,
    y     = 1.03,
    label = "Mix diversifies",
    hjust = 0,
    size  = 2.5,
    color = "gray45"
  ) +
  # Scales
  scale_color_identity() +
  scale_fill_manual(
    values = colors$palette,
    labels = c(
      "fossil"            = "Fossil fuels",
      "hydro"             = "Hydro",
      "modern_renewables" = "Wind + solar",
      "nuclear"           = "Nuclear"
    )
  ) +
  scale_x_productlist(
    labels = c(
      "Low income"          = "Low\nIncome",
      "Lower-middle income" = "Lower-\nMiddle",
      "Upper-middle income" = "Upper-\nMiddle",
      "High income"         = "High\nIncome"
    )
  ) +
  scale_y_productlist(labels = NULL) +
  coord_cartesian(clip = "off") +
  # Labs
  labs(
    title    = title_text,
    subtitle = subtitle_text,
    caption  = caption_text,
    x        = "World Bank income group"
  ) +
  guides(
    fill = guide_legend(
      nrow         = 1,
      override.aes = list(color = NA)
    )
  )
```

7. Save

Show code
```{r}
#| label: save
#| warning: false

### |-  plot image ----
save_plot(
  p,
  type = "30daychartchallenge",
  year = 2026,
  day = 03,
  width = 10,
  height = 8
  )
```

8. Session Info

R version 4.3.1 (2023-06-16 ucrt)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 11 x64 (build 26100)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] here_1.0.2      ggmosaic_0.4.0  glue_1.8.0      scales_1.4.0
 [5] janitor_2.2.1   showtext_0.9-7  showtextdb_3.0  sysfonts_0.8.9
 [9] ggtext_0.1.2    lubridate_1.9.5 forcats_1.0.1   stringr_1.6.0
[13] dplyr_1.2.0     purrr_1.2.1     readr_2.2.0     tidyr_1.3.2
[17] tibble_3.2.1    ggplot2_4.0.2   tidyverse_2.0.0

loaded via a namespace (and not attached):
 [1] gtable_0.3.6        xfun_0.56           htmlwidgets_1.6.4
 [4] ggrepel_0.9.8       tzdb_0.5.0          vctrs_0.7.1
 [7] tools_4.3.1         generics_0.1.4      curl_7.0.0
[10] parallel_4.3.1      gifski_1.32.0-2     pacman_0.5.1
[13] pkgconfig_2.0.3     data.table_1.18.2.1 RColorBrewer_1.1-3
[16] S7_0.2.0            lifecycle_1.0.5     compiler_4.3.1
[19] farver_2.1.2        textshaping_1.0.4   codetools_0.2-19
[22] snakecase_0.11.1    litedown_0.9        htmltools_0.5.9
[25] yaml_2.3.12         lazyeval_0.2.2      plotly_4.12.0
[28] crayon_1.5.3        pillar_1.11.1       camcorder_0.1.0
[31] magick_2.8.6        commonmark_2.0.0    tidyselect_1.2.1
[34] digest_0.6.39       stringi_1.8.7       rsvg_2.6.2
[37] rprojroot_2.1.1     fastmap_1.2.0       grid_4.3.1
[40] cli_3.6.5           magrittr_2.0.3      productplots_0.1.2
[43] withr_3.0.2         bit64_4.6.0-1       timechange_0.4.0
[46] rmarkdown_2.30      httr_1.4.8          bit_4.6.0
[49] otel_0.2.0          ragg_1.5.0          hms_1.1.4
[52] evaluate_1.0.5      knitr_1.51          viridisLite_0.4.3
[55] markdown_2.0        rlang_1.1.7         gridtext_0.1.6
[58] Rcpp_1.1.1          xml2_1.5.2          vroom_1.7.0
[61] svglite_2.1.3       rstudioapi_0.18.0   jsonlite_2.0.0
[64] R6_2.6.1            plyr_1.8.9          systemfonts_1.3.2

9. GitHub Repository

The complete code for this analysis is available in 30dcc_2026_03.qmd.

For the full repository, click here.

10. References

  1. Data Sources:

    • Our World in Data. (2023). Electricity Mix. Based on data from Ember and the Energy Institute Statistical Review of World Energy. Retrieved from https://raw.githubusercontent.com/owid/energy-data/master/owid-energy-data.csv

    • Ember. (2023). Yearly Electricity Data. Retrieved from https://ember-energy.org

    • Energy Institute. (2023). Statistical Review of World Energy. Retrieved from https://www.energyinst.org/statistical-review

11. Custom Functions Documentation

This analysis uses custom functions from my personal module library for efficiency and consistency across projects.

Functions Used:

  • fonts.R: setup_fonts(), get_font_families() - Font management with showtext
  • social_icons.R: create_social_caption() - Generates formatted social media captions
  • image_utils.R: save_plot() - Consistent plot saving with naming conventions
  • base_theme.R: create_base_theme(), extend_weekly_theme(), get_theme_colors() - Custom ggplot2 themes

Why custom functions?
These utilities standardize theming, fonts, and output across all my data visualizations. The core analysis (data tidying and visualization logic) uses only standard tidyverse packages.

Source Code:
View all custom functions → GitHub: R/utils

Back to top

Citation

BibTeX citation:
@online{ponce2026,
  author = {Ponce, Steven},
  title = {The {Energy} {Transition} {Is} {Uneven}},
  date = {2026-04-03},
  url = {https://stevenponce.netlify.app/data_visualizations/30DayChartChallenge/2026/30dcc_2026_03.html},
  langid = {en}
}
For attribution, please cite this work as:
Ponce, Steven. 2026. “The Energy Transition Is Uneven.” April 3. https://stevenponce.netlify.app/data_visualizations/30DayChartChallenge/2026/30dcc_2026_03.html.
