Volatility and Change Patterns in Mount Vesuvius Seismic Activity (2011-2023)

Analysis reveals dynamic behavior with high variability across different time scales

TidyTuesday
Data Visualization
R Programming
2025
This visualization examines seismic activity at Mount Vesuvius (2011-2023) using data from Italy’s INGV. The analysis reveals a multi-layered temporal story: consecutive earthquakes follow a clustered timing pattern with a median 2.6-hour waiting time; monthly activity shows balanced volatility with nearly equal periods of increase and decrease; and beneath this short-term variability lies distinct multi-year cycles. By analyzing patterns across different time scales, we gain insight into how this famous volcano—currently in a quiescent state—displays both ordered and chaotic behavior simultaneously. This approach demonstrates how temporal volatility analysis can enhance our understanding of complex volcanic systems and potentially improve monitoring strategies.
Author

Steven Ponce

Published

May 11, 2025

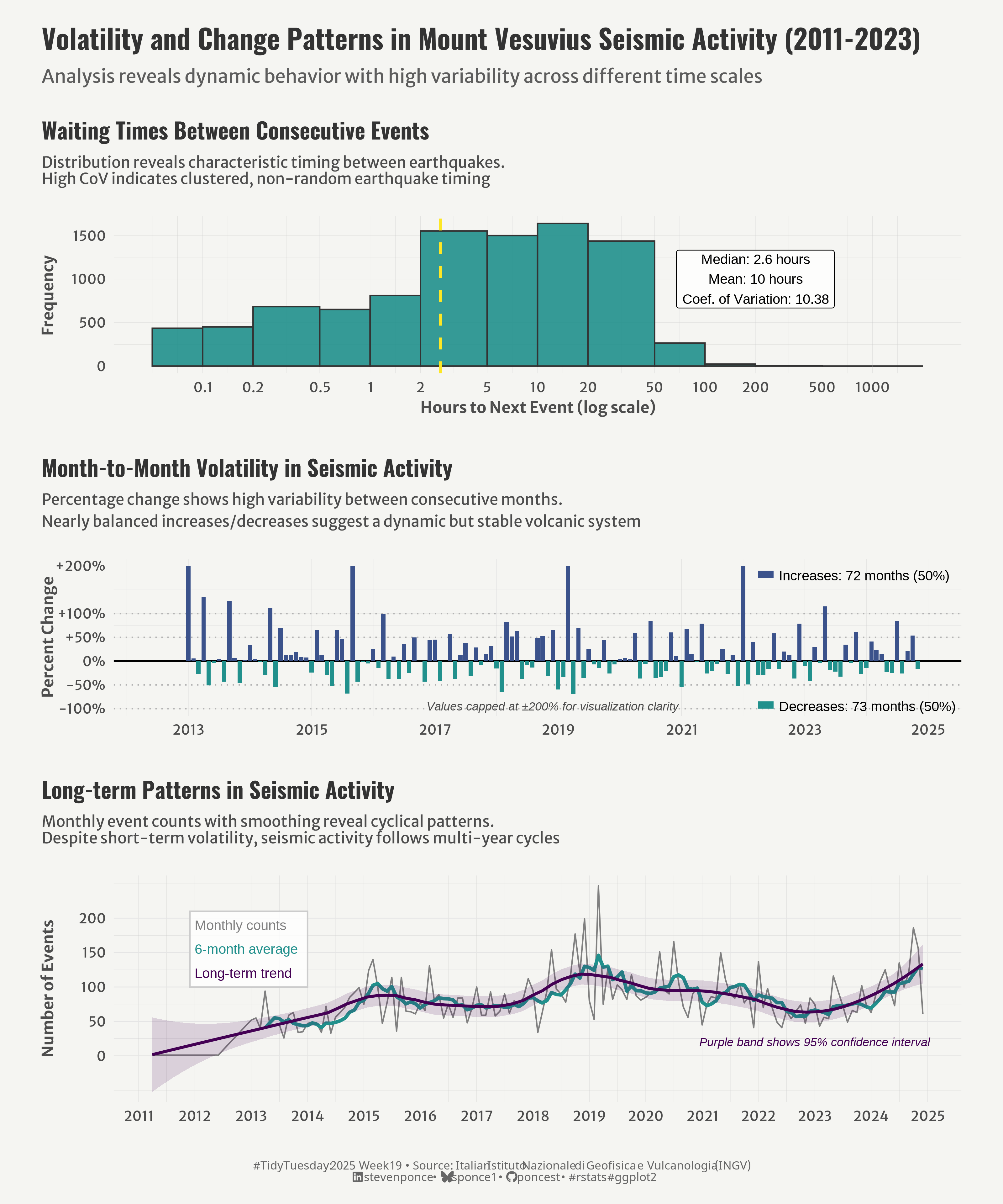

Figure 1: This visualization shows volatility and change patterns in Mount Vesuvius seismic activity from 2011 to 2023 through three related charts. The top chart displays waiting times between consecutive earthquakes on a logarithmic scale, showing that most events occur within 2-20 hours of each other, with a median of 2.6 hours. The middle chart shows month-to-month percentage changes in seismic activity, with nearly balanced increases (72 months, 50%) and decreases (73 months, 50%), suggesting a dynamic but stable volcanic system. The bottom chart presents long-term patterns with monthly counts, a 6-month moving average, and a trend line, revealing multi-year cycles despite short-term volatility.

Steps to Create this Graphic

1. Load Packages & Setup

Show code
```{r}
#| label: load
#| warning: false
#| message: false
#| results: "hide"

## 1. LOAD PACKAGES & SETUP ----
suppressPackageStartupMessages({
if (!require("pacman")) install.packages("pacman")
pacman::p_load(
  tidyverse,     # Easily Install and Load the 'Tidyverse'
  ggtext,        # Improved Text Rendering Support for 'ggplot2'
  showtext,      # Using Fonts More Easily in R Graphs
  janitor,       # Simple Tools for Examining and Cleaning Dirty Data
  scales,        # Scale Functions for Visualization
  glue,          # Interpreted String Literals
  patchwork      # The Composer of Plots
  )
})

### |- figure size ----
camcorder::gg_record(
  dir    = here::here("temp_plots"),
  device = "png",
  width  =  10,
  height =  12,
  units  = "in",
  dpi    = 320
)

# Source utility functions
suppressMessages(source(here::here("R/utils/fonts.R")))
source(here::here("R/utils/social_icons.R"))
source(here::here("R/utils/image_utils.R"))
source(here::here("R/themes/base_theme.R"))
```

2. Read in the Data

Show code
```{r}
#| label: read
#| include: true
#| eval: true
#| warning: false

tt <- tidytuesdayR::tt_load(2025, week = 19)

vesuvius_raw <- tt$vesuvius |> clean_names()

tidytuesdayR::readme(tt)
rm(tt)
```

3. Examine the Data

Show code
```{r}
#| label: examine
#| include: true
#| eval: true
#| results: 'hide'
#| warning: false

glimpse(vesuvius_raw)
skimr::skim(vesuvius_raw)
```

4. Tidy Data

Show code
```{r}
#| label: tidy
#| warning: false

### |-  tidy data ----
vesuvius <- vesuvius_raw |>
  mutate(
    date = as.Date(time),
    year = year(time),
    month = month(time),
    day = day(time),
    hour = hour(time),
    weekday = wday(time, label = TRUE),
    # Create a month-year for time series
    month_year = floor_date(time, "month"),
  )

# P1: Monthly event counts with  trend decomposition -----
monthly_counts <- vesuvius |>
  count(year, month) |>
  mutate(date = make_date(year, month, 1))

# Calculate a 6-month moving average
monthly_counts <- monthly_counts |>
  arrange(date) |>
  mutate(moving_avg = zoo::rollmean(n, k = 6, fill = NA, align = "right"))

# P2: Time-to-next events analysis -----
events_ordered <- vesuvius |>
  arrange(time) |>
  mutate(
    next_event_time = lead(time),
    hours_to_next = as.numeric(difftime(next_event_time, time, units = "hours"))
  ) |>
  filter(!is.na(hours_to_next))

# Calculate statistics
median_time <- median(events_ordered$hours_to_next, na.rm = TRUE)
mean_time <- mean(events_ordered$hours_to_next, na.rm = TRUE)
cv <- sd(events_ordered$hours_to_next, na.rm = TRUE) / mean_time

# P3: Event rate change analysis ----
events_per_month <- vesuvius |>
  count(year, month) |>
  mutate(date = make_date(year, month, 1)) |>
  arrange(date) |>
  mutate(
    prev_month = lag(n),
    pct_change = (n - prev_month) / prev_month * 100,
    change_type = ifelse(pct_change > 0, "Increase", "Decrease")
  ) |>
  filter(!is.na(pct_change)) |>
  # Limit extreme values for better visualization (cap at ±200%)
  mutate(pct_change = pmin(pmax(pct_change, -200), 200))

# Calculate statistics
increase_count <- sum(events_per_month$change_type == "Increase")
decrease_count <- sum(events_per_month$change_type == "Decrease")
total_months <- nrow(events_per_month)
```

5. Visualization Parameters

Show code
```{r}
#| label: params
#| include: true
#| warning: false

### |-  plot aesthetics ----
colors <- get_theme_colors(
    palette = c(
        "gray_line" = "#808080",
        "moving_avg" = "#21908C",
        "trend_line" = "#440154",
        "confidence" = "#440154",
        "positive_change" = "#3B528B",
        "negative_change" = "#5DC863",
        "median_line" = "#FDE725",
        "hist_bar" = "#21908CFF",
        "Decrease" = "#21908CFF",
        "Increase" = "#3B528B"
    )
)

### |-  titles and caption ----
title_text <- str_glue("Volatility and Change Patterns in Mount Vesuvius Seismic Activity (2011-2023)")

subtitle_text <- str_glue("Analysis reveals dynamic behavior with high variability across different time scales")

# Create caption
caption_text <- create_social_caption(
  tt_year = 2025,
  tt_week = 19,
  source_text =  "Italian Istituto Nazionale di Geofisica e Vulcanologia (INGV)"
)

### |-  fonts ----
setup_fonts()
fonts <- get_font_families()

### |-  plot theme ----

# Start with base theme
base_theme <- create_base_theme(colors)

# Add weekly-specific theme elements
weekly_theme <- extend_weekly_theme(
  base_theme,
  theme(
    # Text styling
    plot.title = element_text(face = "bold", family = fonts$title, size = rel(1.14), color  = colors$title, margin = margin(b = 10)),
    plot.subtitle = element_text(family = fonts$subtitle, color = colors$subtitle, size = rel(0.78), margin = margin(b = 20)),

    # Axis elements
    axis.title = element_text(color = colors$text, face = "bold", size = rel(0.8)),
    axis.text = element_text(color = colors$text, size = rel(0.7)),

    # Grid elements
    panel.grid.minor = element_line(color = "gray80", linewidth = 0.05),
    panel.grid.major = element_line(color = "gray80", linewidth = 0.05),

    # Legend elements
    legend.position = "top",
    legend.direction = "horizontal",
    legend.title = element_text(family = fonts$text, size = rel(0.8), face = "bold"),
    legend.text = element_text(family = fonts$text, size = rel(0.7)),

    # Style facet labels
    strip.text = element_text(size = rel(0.75), face = "bold",
                              color = colors$title, margin = margin(b = 8, t = 8)
    ),

    # Add spacing
    panel.spacing = unit(1.1, "lines"),
    strip.background = element_rect(fill = "#e0e0e0", color = NA),

    # Plot margins
    plot.margin = margin(t = 15, r = 15, b = 15, l = 15),
  )
)

# Set theme
theme_set(weekly_theme)
```

6. Plot

Show code
```{r}
#| label: plot
#| warning: false

### |-  Plot  ----
# P1: Monthly event counts with  trend decomposition -----
p1 <- ggplot(monthly_counts, aes(x = date)) +
  # Geoms
  geom_hline(yintercept = seq(0, 200, by = 50), color = "gray90", linewidth = 0.3) +
  geom_line(aes(y = n), color = colors$palette["gray_line"], linewidth = 0.5) +
  geom_line(aes(y = moving_avg), color = colors$palette["moving_avg"], linewidth = 1.2) +
  geom_smooth(aes(y = n),
    method = "loess", span = 0.3, color = colors$palette["trend_line"],
    se = TRUE, fill = colors$palette["confidence"], alpha = 0.15
  ) +
  # Annotate
  annotate("rect",
    xmin = as.Date("2011-12-01"), xmax = as.Date("2014-01-01"),
    ymin = 100, ymax = 210,
    fill = "white", color = "gray80", alpha = 0.8
    ) +
  annotate("text",
    x = as.Date("2012-01-01"), y = 190,
    label = "Monthly counts", color = colors$palette["gray_line"], hjust = 0, size = 3.5, fontface = "plain"
  ) +
  annotate("text",
    x = as.Date("2012-01-01"), y = 155,
    label = "6-month average", color = colors$palette["moving_avg"], hjust = 0, size = 3.5, fontface = "plain"
  ) +
  annotate("text",
    x = as.Date("2012-01-01"), y = 120,
    label = "Long-term trend", color = colors$palette["trend_line"], hjust = 0, size = 3.5, fontface = "plain"
  ) +
  annotate("text",
    x = as.Date("2023-01-01"), y = 20,
    label = "Purple band shows 95% confidence interval", color = colors$palette["confidence"],
    hjust = 0.5, size = 3, fontface = "italic"
  ) +
  # Scales
  scale_x_date(date_breaks = "1 year", date_labels = "%Y") +
  scale_y_continuous(breaks = seq(0, 200, by = 50)) +
  # Labs
  labs(
    title = "Long-term Patterns in Seismic Activity",
    subtitle = "Monthly event counts with smoothing reveal cyclical patterns.\nDespite short-term volatility, seismic activity follows multi-year cycles",
    x = NULL,
    y = "Number of Events"
  )

# P2: Time-to-next events analysis -----
p2 <- ggplot(events_ordered, aes(x = hours_to_next)) +
  # Geoms
  geom_histogram(
    aes(y = after_stat(count)),
    breaks = c(0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000),
    fill = colors$palette["hist_bar"], color = "#333333", alpha = 0.9
  ) +
  geom_vline(
    xintercept = median_time,
    linetype = "dashed",
    color = colors$palette["median_line"],
    linewidth = 1
  ) +
  # Annotate
  annotate("label",
    x = 200, y = 1000,
    label = paste0(
      "Median: ", round(median_time, 1), " hours\n",
      "Mean: ", round(mean_time, 1), " hours\n",
      "Coef. of Variation: ", round(cv, 2)
    ),
    color = "black", fill = "white", alpha = 0.8, size = 3.5, fontface = "plain"
  ) +
  # Scales
  scale_x_log10(
    breaks = c(0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000),
    labels = c("0.1", "0.2", "0.5", "1", "2", "5", "10", "20", "50", "100", "200", "500", "1000"),
    limits = c(0.05, 2000)
  ) +
  # Labs
  labs(
    title = "Waiting Times Between Consecutive Events",
    subtitle = "Distribution reveals characteristic timing between earthquakes.\nHigh CoV indicates clustered, non-random earthquake timing",
    x = "Hours to Next Event (log scale)",
    y = "Frequency"
  )

# P3: Event rate change analysis ----
p3 <- ggplot(events_per_month, aes(x = date, y = pct_change, fill = change_type)) +
  # Geoms
  geom_hline(yintercept = 0, linetype = "solid", color = "black", linewidth = 0.7) +
  geom_hline(yintercept = c(-50, 50, 100, -100), linetype = "dotted", color = "gray70") +
  geom_col(width = 25) +

  # Annotate
  annotate("rect",
    xmin = as.Date("2022-04-01"), xmax = as.Date("2022-07-01"),
    ymin = 175, ymax = 190,
    fill = colors$palette["Increase"],
  ) +
  annotate("text",
    x = as.Date("2022-08-01"), y = 180,
    label = paste0("Increases: ", increase_count, " months (", round(increase_count / total_months * 100), "%)"),
    color = "black", hjust = 0, size = 3.5, fontface = "plain"
  ) +
  annotate("rect",
    xmin = as.Date("2022-04-01"), xmax = as.Date("2022-07-01"),
    ymin = -100, ymax = -85,
    fill = colors$palette["Decrease"]
  ) +
  annotate("text",
    x = as.Date("2022-08-01"), y = -95,
    label = paste0("Decreases: ", decrease_count, " months (", round(decrease_count / total_months * 100), "%)"),
    color = "black", hjust = 0, size = 3.5, fontface = "plain"
  ) +
  annotate("text",
    x = median(events_per_month$date), y = -95,
    label = "Values capped at ±200% for visualization clarity",
    color = "gray30", size = 3, fontface = "italic"
 ) +
  # Scales
  scale_fill_manual(
    values = colors$palette,
    name = "Change"
  ) +
  scale_x_date(
    date_breaks = "2 year",
    date_labels = "%Y",
    limits = c(min(events_per_month$date), max(events_per_month$date))
  ) +
  scale_y_continuous(
    breaks = c(-200, -100, -50, 0, 50, 100, 200),
    labels = c("-200%", "-100%", "-50%", "0%", "+50%", "+100%", "+200%")
  ) +
  # Labs
  labs(
    title = "Month-to-Month Volatility in Seismic Activity",
    subtitle = "Percentage change shows high variability between consecutive months.\nNearly balanced increases/decreases suggest a dynamic but stable volcanic system",
    x = NULL,
    y = "Percent Change"
  ) +
  # Theme
  theme(
    plot.subtitle = element_text(lineheight = 1.2),
    legend.position = "none"
  )

# Combined Plot ----
combined_plot <- (p2 / p3 / p1) +
    plot_layout(
        heights = c(0.9, 0.9, 1.3),
        )

combined_plot <- combined_plot +
    plot_annotation(
        title = title_text,
        subtitle = subtitle_text,
        caption = caption_text,
        theme = theme(
            plot.title = element_text(
                size = rel(1.4),
                family = fonts$title,
                face = "bold",
                color = colors$title,
                lineheight = 1.1,
                margin = margin(t = 5, b = 5)
            ),
            plot.subtitle = element_text(
                size = rel(0.95),
                family = fonts$subtitle,
                color = alpha(colors$subtitle, 0.9),
                lineheight = 1.2,
                margin = margin(t = 5, b = 10)
            ),
            plot.caption = element_markdown(
                size = rel(0.6),
                family = fonts$caption,
                color = colors$caption,
                hjust = 0.5,
                margin = margin(t = 10)
            )
        )
    )
```

7. Save

Show code
```{r}
#| label: save
#| warning: false

### |-  plot image ----
save_plot_patchwork(
  plot = combined_plot,
  type = "tidytuesday",
  year = 2025,
  week = 19,
  width = 10,
  height = 12
)
```

8. Session Info

R version 4.4.1 (2024-06-14 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 22631)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices datasets  utils     methods   base

other attached packages:
 [1] here_1.0.1      patchwork_1.3.0 glue_1.8.0      scales_1.3.0
 [5] janitor_2.2.0   showtext_0.9-7  showtextdb_3.0  sysfonts_0.8.9
 [9] ggtext_0.1.2    lubridate_1.9.3 forcats_1.0.0   stringr_1.5.1
[13] dplyr_1.1.4     purrr_1.0.2     readr_2.1.5     tidyr_1.3.1
[17] tibble_3.2.1    ggplot2_3.5.1   tidyverse_2.0.0 pacman_0.5.1

loaded via a namespace (and not attached):
 [1] tidyselect_1.2.1   farver_2.1.2       fastmap_1.2.0      gh_1.4.1
 [5] digest_0.6.37      timechange_0.3.0   lifecycle_1.0.4    rsvg_2.6.1
 [9] magrittr_2.0.3     compiler_4.4.0     rlang_1.1.6        tools_4.4.0
[13] utf8_1.2.4         yaml_2.3.10        knitr_1.49         skimr_2.1.5
[17] labeling_0.4.3     htmlwidgets_1.6.4  bit_4.5.0          curl_6.0.0
[21] xml2_1.3.6         camcorder_0.1.0    repr_1.1.7         tidytuesdayR_1.1.2
[25] withr_3.0.2        grid_4.4.0         fansi_1.0.6        colorspace_2.1-1
[29] gitcreds_0.1.2     cli_3.6.4          rmarkdown_2.29     crayon_1.5.3
[33] generics_0.1.3     rstudioapi_0.17.1  tzdb_0.5.0         commonmark_1.9.2
[37] splines_4.4.0      parallel_4.4.0     ggplotify_0.1.2    base64enc_0.1-3
[41] vctrs_0.6.5        yulab.utils_0.1.8  Matrix_1.7-0       jsonlite_1.8.9
[45] gridGraphics_0.5-1 hms_1.1.3          bit64_4.5.2        systemfonts_1.1.0
[49] magick_2.8.5       gifski_1.32.0-1    codetools_0.2-20   stringi_1.8.4
[53] gtable_0.3.6       munsell_0.5.1      pillar_1.9.0       rappdirs_0.3.3
[57] htmltools_0.5.8.1  R6_2.5.1           httr2_1.0.6        rprojroot_2.0.4
[61] vroom_1.6.5        evaluate_1.0.1     lattice_0.22-6     markdown_1.13
[65] gridtext_0.1.5     snakecase_0.11.1   renv_1.0.3         Rcpp_1.0.13-1
[69] nlme_3.1-164       svglite_2.1.3      mgcv_1.9-1         xfun_0.49
[73] fs_1.6.5           zoo_1.8-12         pkgconfig_2.0.3

9. GitHub Repository

The complete code for this analysis is available in tt_2025_19.qmd.

For the full repository, click here.

10. References

  1. Data Sources:
Back to top
