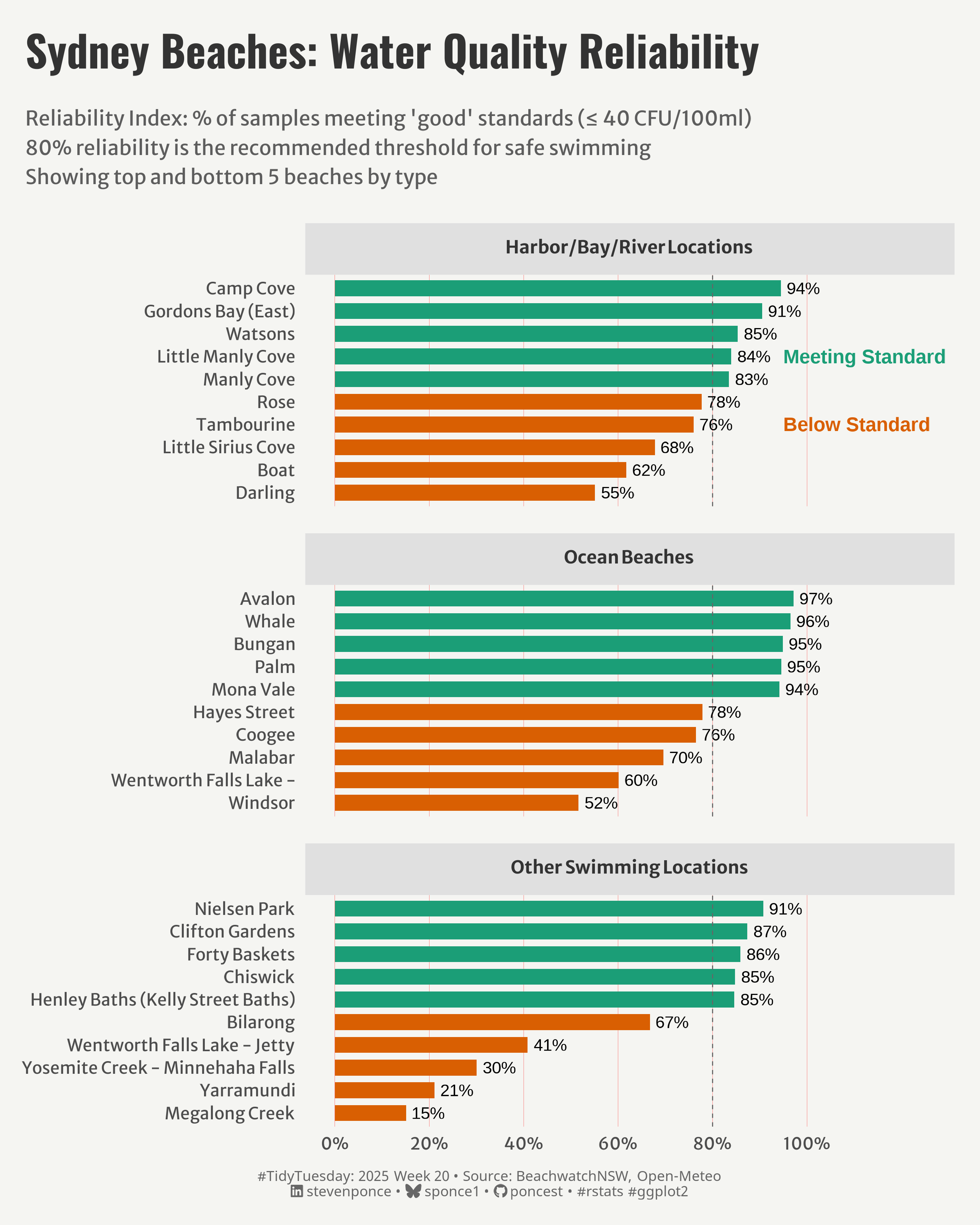

title: "Sydney Beaches: Water Quality Reliability"
subtitle: "Reliability Index: % of samples meeting 'good' standards (≤ 40 CFU/100ml). 80% reliability is the recommended threshold for safe swimming. Showing top and bottom 5 beaches by type"
description: "An analysis of water quality reliability across Sydney's beaches, based on data from the NSW State Government Beachwatch program. This visualization highlights which beaches consistently meet safety standards for swimming and which ones struggle with water quality issues. The stark contrast between ocean beaches (mostly meeting standards) and harbor/river locations (frequently below threshold) reveals important patterns in Sydney's water quality management."
author: "Steven Ponce"
date: "2025-05-18"
categories: ["TidyTuesday", "2025"]
tags: [
"water quality", "Sydney", "beaches", "environmental data", "public health", "swimming safety", "enterococci", "bacteria levels", "environmental monitoring", "coastal management", "water pollution", "recreation safety", "harbor pollution", "ocean beaches", "urban waterways"
]
image: "thumbnails/tt_2025_20.png"
format:
html:
toc: true
toc-depth: 5
code-link: true
code-fold: true
code-tools: true
code-summary: "Show code"
editor_options:
chunk_output_type: inline
execute:
freeze: true
cache: true
error: false
message: false
warning: false
eval: true
# filters:
# - social-share
# share:
# permalink: "https://stevenponce.netlify.app/data_visualizations/TidyTuesday/2025/tt_2025_20.html"
# description: "#TidyTuesday week 20: Exploring Sydney beaches water quality reliability - see which beaches are consistently safe for swimming and which fall below standards"
#
# twitter: true
# linkedin: true
# email: true
# facebook: false
# reddit: false
# stumble: false
# tumblr: false
# mastodon: true
# bsky: true
---
{#fig-1}
### <mark> **Steps to Create this Graphic** </mark>
#### 1. Load Packages & Setup
```{r}
#| label: load
#| warning: false
#| message: false
#| results: "hide"
## 1. LOAD PACKAGES & SETUP ----
suppressPackageStartupMessages({
if (!require("pacman")) install.packages("pacman")
pacman::p_load(
tidyverse, # Easily Install and Load the 'Tidyverse'
ggtext, # Improved Text Rendering Support for 'ggplot2'
showtext, # Using Fonts More Easily in R Graphs
janitor, # Simple Tools for Examining and Cleaning Dirty Data
scales, # Scale Functions for Visualization
glue # Interpreted String Literals
)
})
### |- figure size ----
camcorder::gg_record(
dir = here::here("temp_plots"),
device = "png",
width = 8,
height = 10,
units = "in",
dpi = 320
)
# Source utility functions
suppressMessages(source(here::here("R/utils/fonts.R")))
source(here::here("R/utils/social_icons.R"))
source(here::here("R/utils/image_utils.R"))
source(here::here("R/themes/base_theme.R"))
```
#### 2. Read in the Data
```{r}
#| label: read
#| include: true
#| eval: true
#| warning: false
tt <- tidytuesdayR::tt_load(2025, week = 20)
water_quality_raw <- tt$water_quality |> clean_names()
weather_raw <- tt$weather |> clean_names()
tidytuesdayR::readme(tt)
rm(tt)
```
#### 3. Examine the Data
```{r}
#| label: examine
#| include: true
#| eval: true
#| results: 'hide'
#| warning: false
glimpse(water_quality_raw)
glimpse(weather_raw)
skimr::skim(water_quality_raw)
skimr::skim(weather_raw)
```
#### 4. Tidy Data
```{r}
#| label: tidy
#| warning: false
### |- tidy data ----
# Process and categorize raw water quality data
water_quality_processed <- water_quality_raw |>
mutate(
bacteria_category = case_when(
enterococci_cfu_100ml <= 40 ~ "Good (<= 40 CFU)",
enterococci_cfu_100ml > 40 & enterococci_cfu_100ml <= 200 ~ "Moderate (41-200 CFU)",
enterococci_cfu_100ml > 200 ~ "Poor (> 200 CFU)",
TRUE ~ "Unknown"
),
bacteria_category = factor(
bacteria_category,
levels = c("Good (<= 40 CFU)", "Moderate (41-200 CFU)", "Poor (> 200 CFU)", "Unknown")
)
)
# Summarize water quality at the beach level
beach_reliability <- water_quality_processed |>
group_by(swim_site, region) |>
summarise(
total_samples = n(),
good_samples = sum(enterococci_cfu_100ml <= 40, na.rm = TRUE),
reliability_index = good_samples / total_samples * 100,
.groups = "drop"
) |>
filter(total_samples >= 50) |>
mutate(
reliability_rating = case_when(
is.na(reliability_index) ~ "Unknown",
reliability_index >= 90 ~ "Excellent (≥90%)",
reliability_index >= 80 ~ "Very Good (80-89%)",
reliability_index >= 70 ~ "Good (70-79%)",
reliability_index >= 60 ~ "Moderate (60-69%)",
reliability_index < 60 ~ "Needs Improvement (<60%)"
),
reliability_rating = factor(
reliability_rating,
levels = c(
"Excellent (≥90%)", "Very Good (80-89%)", "Good (70-79%)",
"Moderate (60-69%)", "Needs Improvement (<60%)"
)
)
)
# Classify beaches and select top/bottom per type
beach_by_type <- beach_reliability |>
mutate(
beach_type = case_when(
grepl("Harbour|Harbor|Bay|River|Cove", swim_site) ~ "Harbor/Bay/River",
grepl("Beach|Ocean", swim_site) ~ "Ocean Beach",
TRUE ~ "Other"
)
) |>
group_by(beach_type) |>
mutate(rank_in_type = min_rank(desc(reliability_index))) |>
filter(rank_in_type <= 5 | rank_in_type > n() - 5) |>
mutate(
status = if_else(reliability_index >= 80, "Meeting Standard", "Below Standard"),
short_name = swim_site |>
str_replace(" Beach$", "") |>
str_replace(" Harbour$", "") |>
str_replace(" Bay$", "") |>
str_replace(" Baths$", "") |>
str_replace(" Reserve$", "") |>
str_replace(" Pool$", ""),
short_name = reorder(short_name, reliability_index)
)
```
#### 5. Visualization Parameters
```{r}
#| label: params
#| include: true
#| warning: false
### |- plot aesthetics ----
colors <- get_theme_colors(
palette = c(
"Meeting Standard" = "#1b9e77",
"Below Standard" = "#d95f02"
)
)
### |- titles and caption ----
title_text <- str_glue("Sydney Beaches: Water Quality Reliability")
subtitle_text <- str_glue(
"Reliability Index: % of samples meeting 'good' standards (≤ 40 CFU/100ml)\n",
"80% reliability is the recommended threshold for safe swimming\n",
"Showing top and bottom 5 beaches by type"
)
# Create caption
caption_text <- create_social_caption(
tt_year = 2025,
tt_week = 20,
source_text = "BeachwatchNSW, Open-Meteo"
)
### |- fonts ----
setup_fonts()
fonts <- get_font_families()
### |- plot theme ----
# Start with base theme
base_theme <- create_base_theme(colors)
# Add weekly-specific theme elements
weekly_theme <- extend_weekly_theme(
base_theme,
theme(
# Axis elements
axis.title = element_text(color = colors$text, face = "bold", size = rel(0.8)),
axis.text = element_text(color = colors$text, size = rel(0.7)),
# Grid elements
panel.grid.minor = element_blank(),
panel.grid.major.y = element_blank(),
panel.grid.major.x = element_line(color = "red", linewidth = 0.05),
# Legend elements
legend.position = "plot",
legend.direction = "horizontal",
legend.title = element_text(family = fonts$text, size = rel(0.8), face = "bold"),
legend.text = element_text(family = fonts$text, size = rel(0.7)),
# Style facet labels
strip.text = element_text(size = rel(0.75), face = "bold",
color = colors$title, margin = margin(b = 5, t = 5)
),
# Add spacing
panel.spacing = unit(1.1, "lines"),
strip.background = element_rect(fill = "#e0e0e0", color = NA),
# Plot margins
plot.margin = margin(t = 15, r = 15, b = 15, l = 15),
)
)
# Set theme
theme_set(weekly_theme)
```
#### 6. Plot
```{r}
#| label: plot
#| warning: false
# Final plot -----
p <- ggplot(beach_by_type, aes(x = reliability_index, y = short_name)) +
# Geoms
geom_col(aes(fill = status), width = 0.7) +
geom_text(aes(label = sprintf("%d%%", round(reliability_index))),
hjust = -0.2,
size = 3.5
) +
geom_text(
data = tibble(
beach_type = "Harbor/Bay/River",
status = c("Meeting Standard", "Below Standard"),
x = 95,
y = c(7, 4),
label = c("Meeting Standard", "Below Standard")
),
aes(x = x, y = y, label = label, color = status),
hjust = 0,
size = 4,
fontface = "bold",
inherit.aes = FALSE
) +
geom_vline(xintercept = 80, linetype = "dashed", color = "gray40", linewidth = 0.3) +
# Scales
scale_fill_manual(values = colors$palette) +
scale_color_manual(values = colors$palette) +
scale_x_continuous(
limits = c(0, 125),
breaks = c(0, 20, 40, 60, 80, 100),
labels = c("0%", "20%", "40%", "60%", "80%", "100%")
) +
# Facets
facet_wrap(~beach_type,
scales = "free_y", ncol = 1,
labeller = labeller(beach_type = c(
"Harbor/Bay/River" = "Harbor/Bay/River Locations",
"Ocean Beach" = "Ocean Beaches",
"Other" = "Other Swimming Locations"
))
) +
# Labs
labs(
title = title_text,
subtitle = subtitle_text,
caption = caption_text,
x = NULL,
y = NULL,
fill = "Status",
) +
# Theme
theme(
plot.title = element_text(
size = rel(1.8),
family = fonts$title,
face = "bold",
color = colors$title,
lineheight = 1.1,
margin = margin(t = 5, b = 15)
),
plot.subtitle = element_text(
size = rel(0.85),
family = fonts$subtitle,
color = alpha(colors$subtitle, 0.9),
lineheight = 1.2,
margin = margin(t = 5, b = 20)
),
plot.caption = element_markdown(
size = rel(0.6),
family = fonts$caption,
color = colors$caption,
hjust = 0.5,
margin = margin(t = 10)
),
legend.key = element_rect(fill = NA),
strip.text = element_markdown(
lineheight = 1.2,
padding = margin(5, 5, 5, 5)
)
)
```
#### 7. Save
```{r}
#| label: save
#| warning: false
### |- plot image ----
save_plot(
plot = p,
type = "tidytuesday",
year = 2025,
week = 20,
width = 8,
height = 10
)
```
#### 8. Session Info
::: {.callout-tip collapse="true"}
##### Expand for Session Info
```{r, echo = FALSE}
#| eval: true
#| warning: false
sessionInfo()
```
:::
#### 9. GitHub Repository
::: {.callout-tip collapse="true"}
##### Expand for GitHub Repo
The complete code for this analysis is available in [`tt_2025_20.qmd`](https://github.com/poncest/personal-website/blob/master/data_visualizations/TidyTuesday/2025/tt_2025_20.qmd).
For the full repository, [click here](https://github.com/poncest/personal-website/).
:::
#### 10. References
::: {.callout-tip collapse="true"}
##### Expand for References
1. Data Sources:
- TidyTuesday 2025 Week 20: [Water Quality at Sydney Beaches](https://github.com/rfordatascience/tidytuesday/blob/main/data/2025/2025-05-20)
:::
