Flint Lead Contamination: Government vs. Citizen Testing (2015)

Comparison of water samples collected by MDEQ (n = 71) and Virginia Tech (n = 271)

Comparing lead levels in Flint water samples: government vs. citizen science testing revealed different contamination patterns and the impact of sample exclusion on public health reporting.

Published

November 1, 2025

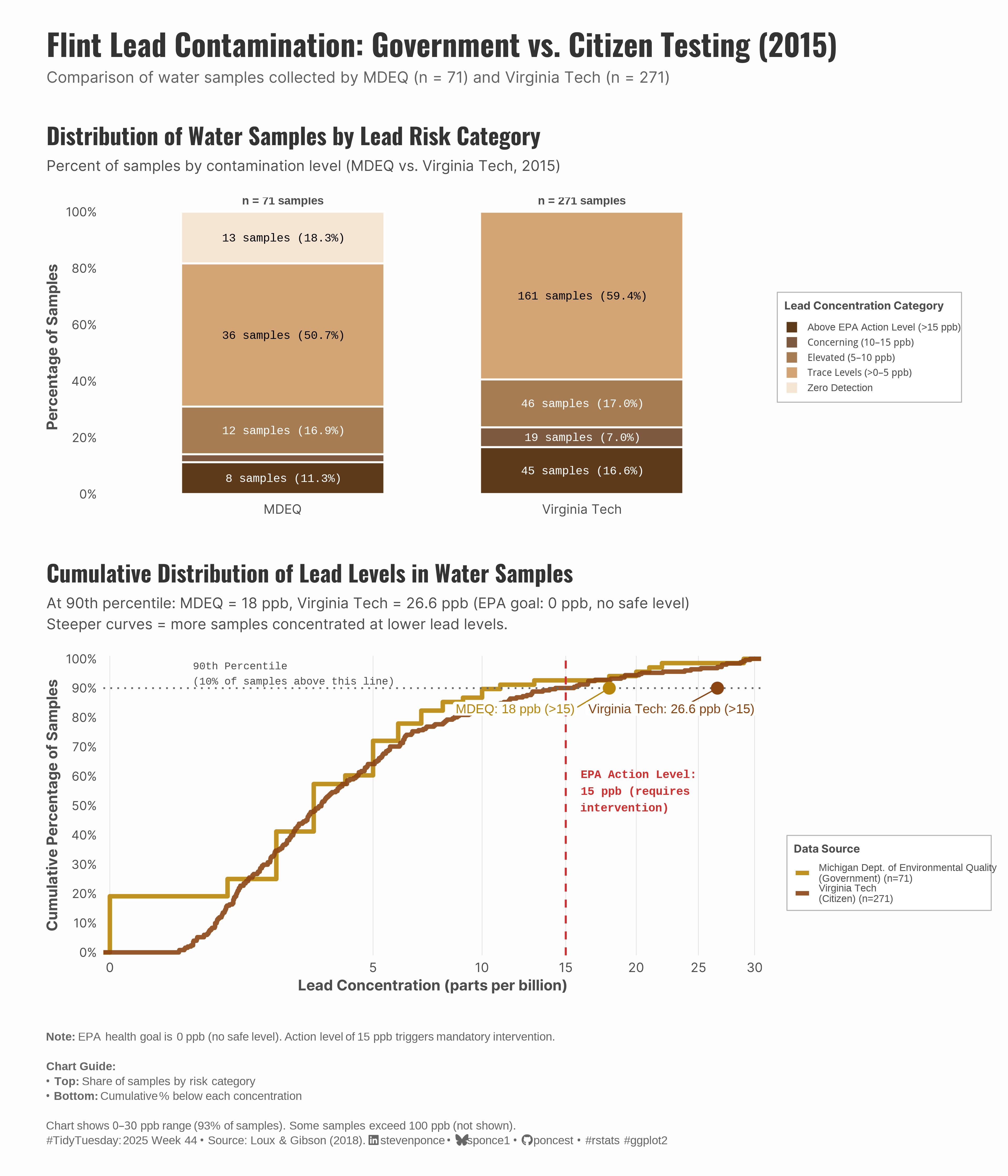

Figure 1: A two-panel visualization comparing lead contamination in Flint, Michigan water samples (2015). The top panel shows a stacked bar chart with five risk categories from zero detection to above the EPA action level; Virginia Tech citizen science found 16.6% of 271 samples above the 15 ppb action level, versus the MDEQ government’s 11.3% of 71 samples. The bottom panel displays cumulative distribution curves showing the percentage of samples below each lead concentration; at the 90th percentile, MDEQ measured 18 ppb, while Virginia Tech measured 26.6 ppb. The brown color palette progresses from light tan (safe) to dark brown (dangerous). Both charts emphasize EPA’s health goal of 0 ppb.

Steps to Create this Graphic

1. Load Packages & Setup

Show code

```{r}
#| label: load
#| warning: false
#| message: false
#| results: "hide"

## 1. LOAD PACKAGES & SETUP ----
suppressPackageStartupMessages({
if (!require("pacman")) install.packages("pacman")
pacman::p_load(
  tidyverse,  # Easily Install and Load the 'Tidyverse'
  ggtext,     # Improved Text Rendering Support for 'ggplot2'
  showtext,   # Using Fonts More Easily in R Graphs
  janitor,    # Simple Tools for Examining and Cleaning Dirty Data
  scales,     # Scale Functions for Visualization
  glue,       # Interpreted String Literals
  ggrepel,    # Automatically Position Non-Overlapping Text Labels with 'ggplot2'
  patchwork   # The Composer of Plots
)
})

### |- figure size ----
camcorder::gg_record(
  dir    = here::here("temp_plots"),
  device = "png",
  width  = 12,
  height = 14,
  units  = "in",
  dpi    = 320
)

# Source utility functions
suppressMessages(source(here::here("R/utils/fonts.R")))
source(here::here("R/utils/social_icons.R"))
source(here::here("R/utils/image_utils.R"))
source(here::here("R/themes/base_theme.R"))
```

2. Read in the Data

Show code

```{r}
#| label: read
#| include: true
#| eval: true
#| warning: false

tt <- tidytuesdayR::tt_load(2025, week = 44)

flint_mdeq <- tt$flint_mdeq |> clean_names()
flint_vt <- tt$flint_vt |> clean_names()

tidytuesdayR::readme(tt)
rm(tt)
```

3. Examine the Data

Show code

```{r}
#| label: examine
#| include: true
#| eval: true
#| results: 'hide'
#| warning: false

glimpse(flint_mdeq)
glimpse(flint_vt)
```

4. Tidy Data

Show code

```{r}
#| label: tidy-fixed
#| warning: false

mdeq_tidy <- flint_mdeq |>
  mutate(
    excluded = is.na(lead2),
    source = "MDEQ"
  ) |>
  select(sample, lead, excluded, notes, source)

vt_tidy <- flint_vt |>
  reframe(
    sample, lead,
    excluded = FALSE,
    notes = NA_character_,
    source = "Virginia Tech"
  )

combined_data <- bind_rows(mdeq_tidy, vt_tidy) |>
  mutate(
    source = factor(source, levels = c("MDEQ", "Virginia Tech")),
    status = if_else(excluded, "Excluded by MDEQ", "Included")
  )

source_labels <- c(
  "MDEQ" = "Michigan Dept. of Environmental Quality\n(Government)",
  "Virginia Tech" = "Virginia Tech\n(Citizen)"
)

stats_tbl <- combined_data |>
  group_by(source) |>
  summarise(
    p90 = quantile(lead, 0.90, na.rm = TRUE),
    median = median(lead, na.rm = TRUE),
    mean = mean(lead, na.rm = TRUE),
    n = n(),
    .groups = "drop"
  )

risk_lvls <- c(
  "Zero Detection",
  "Trace Levels (>0–5 ppb)",
  "Elevated (5–10 ppb)",
  "Concerning (10–15 ppb)",
  "Above EPA Action Level (>15 ppb)"
)

risk_data <- combined_data |>
  mutate(
    risk_category = case_when(
      lead == 0 ~ risk_lvls[1],
      lead > 0 & lead <= 5 ~ risk_lvls[2],
      lead > 5 & lead <= 10 ~ risk_lvls[3],
      lead > 10 & lead <= 15 ~ risk_lvls[4],
      lead > 15 ~ risk_lvls[5],
      TRUE ~ NA_character_
    ) |> factor(levels = risk_lvls)
  ) |>
  count(source, risk_category, name = "count") |>
  group_by(source) |>
  mutate(
    percentage = 100 * count / sum(count),
    total = sum(count)
  ) |>
  ungroup() |>
  mutate(text_color = if_else(risk_category %in% risk_lvls[1:2], "black", "white"))

summary_pct <- risk_data |>
  summarise(
    above_15 = sum(percentage[risk_category == "Above EPA Action Level (>15 ppb)"]),
    above_10 = sum(percentage[risk_category %in% c(
      "Concerning (10–15 ppb)",
      "Above EPA Action Level (>15 ppb)"
    )]),
    .by = source
  ) |>
  arrange(source)
```

5. Visualization Parameters

Show code

```{r}
#| label: params
#| include: true
#| warning: false

### |-  plot aesthetics ----
# Get basic theme colors
colors <- get_theme_colors(
  palette = c(
    "Zero Detection" = "#F5E6D3",
    "Trace Levels (>0–5 ppb)" = "#D4A574",
    "Elevated (5–10 ppb)" = "#A67C52",
    "Concerning (10–15 ppb)" = "#7D5A3F",
    "Above EPA Action Level (>15 ppb)" = "#5D3A1A",
    "MDEQ" = "#B8860B",
    "Virginia Tech" = "#8B4513"
  )
)

### |- titles and caption ----
title_text <- str_glue(
  "Flint Lead Contamination: Government vs. Citizen Testing (2015)"
)

subtitle_text <- str_glue(
  "Comparison of water samples collected by MDEQ (n = 71) and Virginia Tech (n = 271)"
)

pct_leq_30 <- combined_data |>
  summarise(p = mean(lead <= 30, na.rm = TRUE) * 100) |>
  pull(p) |>
  round(0)

caption_text <- create_social_caption_02(
    tt_year = 2025,
    tt_week = 44,
    note_text = glue::glue(
        "**Note:** EPA health goal is 0 ppb (no safe level). ",
        "Action level of 15 ppb triggers mandatory intervention.<br><br>",
        "**Chart Guide:**<br>",
        "• **Top:** Share of samples by risk category<br>",
        "• **Bottom:** Cumulative % below each concentration<br><br>",
        "Chart shows 0–30 ppb range ({pct_leq_30}% of samples). ",
        "Some samples exceed 100 ppb (not shown)."
    ),
    source_text = "Loux & Gibson (2018)."
)

### |-  fonts ----
setup_fonts()
fonts <- get_font_families()

### |-  plot theme ----
# Start with base theme
base_theme <- create_base_theme(colors)

# Add weekly-specific theme elements
weekly_theme <- extend_weekly_theme(
  base_theme,
  theme(
    # Text styling
    plot.title = element_text(
      face = "bold", family = fonts$title, size = rel(1.4),
      color = colors$title, margin = margin(b = 10), hjust = 0
    ),
    plot.subtitle = element_text(
      face = "italic", family = fonts$subtitle, lineheight = 1.2,
      color = colors$subtitle, size = rel(0.9), margin = margin(b = 20), hjust = 0
    ),

    ## Grid
    panel.grid.major.y = element_blank(),
    panel.grid.minor = element_blank(),
    panel.grid.major.x = element_line(color = "gray90", linewidth = 0.3),

    # Axes
    axis.title = element_text(size = rel(0.9), color = "gray30"),
    axis.text = element_text(color = "gray30"),
    axis.text.y = element_text(size = rel(0.95)),
    axis.ticks = element_blank(),

    # Facets
    strip.background = element_rect(fill = "gray95", color = NA),
    strip.text = element_text(
      face = "bold",
      color = "gray20",
      size = rel(1),
      margin = margin(t = 8, b = 8)
    ),
    panel.spacing = unit(2, "lines"),

    # Legend elements
    legend.position = "plot",
    legend.title = element_text(
      family = fonts$tsubtitle,
      color = colors$text, size = rel(0.8), face = "bold"
    ),
    legend.text = element_text(
      family = fonts$tsubtitle,
      color = colors$text, size = rel(0.7)
    ),
    legend.margin = margin(t = 15),

    # Plot margin
    plot.margin = margin(20, 20, 20, 20)
  )
)

# Set theme
theme_set(weekly_theme)
```

6. Plot

Show code

```{r}
#| label: plot
#| warning: false

### |- P1: risk categories plot ----
risk_subtitle <- glue(
  "Percent of samples by contamination level (MDEQ vs. Virginia Tech, 2015)"
)

n_mdeq <- stats_tbl$n[stats_tbl$source == "MDEQ"]
n_vt <- stats_tbl$n[stats_tbl$source == "Virginia Tech"]

p1 <-
  ggplot(risk_data, aes(source, percentage, fill = risk_category)) +
  geom_bar(stat = "identity", color = "white", linewidth = 0.8, width = 0.68) +
  # Geoms
  geom_text(
    aes(
      label = ifelse(
        percentage >= 3,
        sprintf("%d samples (%.1f%%)", count, percentage),
        ""
      ),
      color = text_color,
    ),
    position = position_stack(vjust = 0.5), family = "mono",
    size = 3.5, lineheight = 0.9,
    show.legend = FALSE
  ) +
  # Scales
  scale_color_identity(guide = "none") +
  scale_fill_manual(
    values = colors$palette,
    breaks = rev(risk_lvls),
    labels = rev(risk_lvls),
    name = "Lead Concentration Category"
  ) +
  scale_y_continuous(
    labels = label_percent(scale = 1), breaks = seq(0, 100, 20), expand = c(0.01, 0)
  ) +
  # Annotate
  annotate("text",
    x = 1, y = 104, label = glue("n = {n_mdeq} samples"),
    fontface = "bold", size = 3.5, color = "gray30"
  ) +
  annotate("text",
    x = 2, y = 104, label = glue("n = {n_vt} samples"),
    fontface = "bold", size = 3.5, color = "gray30"
  ) +
  # Labs
  labs(
    title = "Distribution of Water Samples by Lead Risk Category",
    subtitle = risk_subtitle, x = NULL, y = "Percentage of Samples"
  ) +
  # Theme
  theme(
    legend.position = "right",
    legend.background = element_rect(fill = "white", color = "gray70", linewidth = 0.4),
    legend.title = element_text(face = "bold", size = 9.5),
    legend.text = element_text(size = 8.5, family = "Arial"),
    legend.key.size = unit(0.9, "lines"),
    legend.margin = margin(6, 6, 6, 6),
    panel.grid.major.x = element_blank(),
    axis.text.x = element_text(lineheight = 0.95)
  )

### |- P2: Cumulative plot ----
ecdf_subtitle <- glue(
  "At 90th percentile: MDEQ = 18 ppb, Virginia Tech = 26.6 ppb (EPA goal: 0 ppb, no safe level)\n",
  "Steeper curves = more samples concentrated at lower lead levels."
)

annot_pts <- stats_tbl |>
  reframe(
    role = if_else(source == "MDEQ", "Government", "Citizen"),
    x = p90,
    y = 0.90,
    lab = glue("{source}: {round(p90,1)} ppb (>15)"),
    .by = source
  )

p2 <-
  ggplot(combined_data, aes(lead, color = source)) +
    # Geoms
    stat_ecdf(linewidth = 1.8, alpha = 0.9) +
    geom_vline(xintercept = 15, linetype = "dashed", color = "#D32F2F", linewidth = 0.8) +
    geom_hline(yintercept = 0.9, linetype = "dotted", color = "gray40", linewidth = 0.7) +
    geom_point(
      data = annot_pts,
      aes(x, y, fill = source, color = source),
      shape = 21, size = 3.5, stroke = 1.3, show.legend = FALSE
    ) +
    geom_label_repel(
      data = annot_pts, aes(x, y, label = lab, color = source),
      nudge_y = c(-0.07, -0.07), label.padding = unit(0.15, "lines"),
      label.size = 0, show.legend = FALSE, seed = 44
    ) +
    # Annotate
    annotate("text",
      x = 16, y = 0.55,
      label = "EPA Action Level:\n15 ppb (requires\nintervention)",
      color = "#D32F2F", size = 3.5, hjust = 0, fontface = "bold", family = "mono"
    ) +
    annotate("text",
      x = 0.5, y = 0.95,
      label = "90th Percentile\n(10% of samples above this line)",
      color = "gray30", size = 3.2, hjust = 0, family = "mono"
    ) +
    # Scales
    scale_color_manual(
      values = colors$palette,
      breaks = c("MDEQ", "Virginia Tech"),
      labels = c(
        glue("{source_labels['MDEQ']} (n={n_mdeq})"),
        glue("{source_labels['Virginia Tech']} (n={n_vt})")
      ),
      name = "Data Source"
    ) +
    scale_fill_manual(values = colors$palette, guide = "none") +
    scale_x_continuous(
      trans = "sqrt", limits = c(0, 30), breaks = seq(0, 30, 5),
      expand = c(0.01, 0)
    ) +
    scale_y_continuous(
      labels = label_percent(accuracy = 1),
      breaks = seq(0, 1, 0.1), expand = c(0.01, 0)
    ) +
    # Labs
    labs(
      title = "Cumulative Distribution of Lead Levels in Water Samples",
      subtitle = ecdf_subtitle,
      x = "Lead Concentration (parts per billion)",
      y = "Cumulative Percentage of Samples"
    ) +
    guides(color = guide_legend(
      title = "Data Source",
      override.aes = list(linetype = 1, linewidth = 1.8)
    )) +
    # Theme
    theme(
      legend.position = "inside",
      legend.position.inside = c(1.35, 0.15),
      legend.justification = c("right", "bottom"),
      legend.background = element_rect(fill = "white", color = "gray70", linewidth = 0.4),
      legend.title = element_text(face = "bold", size = 9.5),
      legend.text = element_text(size = 8.5, family = "Arial"),
      legend.key.size = unit(1, "lines"),
      legend.margin = margin(6, 6, 6, 6),
    )

### |- Combined plot ----
combined_plots <- p1 / p2

combined_plots <- combined_plots +
  plot_annotation(
    title = title_text,
    subtitle = subtitle_text,
    caption = caption_text,
    theme = theme(
      plot.title = element_text(
        size = rel(1.85),
        family = fonts$title,
        face = "bold",
        color = colors$title,
        lineheight = 1.15,
        margin = margin(t = 8, b = 5)
      ),
      plot.subtitle = element_text(
        size = rel(0.95),
        family = fonts$subtitle,
        color = alpha(colors$subtitle, 0.88),
        lineheight = 1.2,
        margin = margin(t = 2, b = 15)
      ),
      plot.caption = element_markdown(
        size = rel(0.7),
        family = "Arial",
        color = colors$caption,
        hjust = 0,
        lineheight = 1.3,
        margin = margin(t = 12, b = 5),
      )
    )
  )
```

7. Save

Show code

```{r}
#| label: save
#| warning: false

### |-  plot image ----
save_plot_patchwork(
  plot = combined_plots,
  type = "tidytuesday",
  year = 2025,
  week = 44,
  width  = 12,
  height = 14,
  )
```

8. Session Info

Expand for Session Info

R version 4.4.1 (2024-06-14 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26100)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices datasets  utils     methods   base

other attached packages:
 [1] here_1.0.1      patchwork_1.3.0 ggrepel_0.9.6   glue_1.8.0
 [5] scales_1.3.0    janitor_2.2.0   showtext_0.9-7  showtextdb_3.0
 [9] sysfonts_0.8.9  ggtext_0.1.2    lubridate_1.9.3 forcats_1.0.0
[13] stringr_1.5.1   dplyr_1.1.4     purrr_1.0.2     readr_2.1.5
[17] tidyr_1.3.1     tibble_3.2.1    ggplot2_3.5.1   tidyverse_2.0.0
[21] pacman_0.5.1

loaded via a namespace (and not attached):
 [1] gtable_0.3.6       httr2_1.0.6        xfun_0.49          htmlwidgets_1.6.4
 [5] gh_1.4.1           tzdb_0.5.0         yulab.utils_0.1.8  vctrs_0.6.5
 [9] tools_4.4.0        generics_0.1.3     parallel_4.4.0     curl_6.0.0
[13] gifski_1.32.0-1    fansi_1.0.6        pkgconfig_2.0.3    ggplotify_0.1.2
[17] lifecycle_1.0.4    compiler_4.4.0     farver_2.1.2       munsell_0.5.1
[21] codetools_0.2-20   snakecase_0.11.1   htmltools_0.5.8.1  yaml_2.3.10
[25] crayon_1.5.3       pillar_1.9.0       camcorder_0.1.0    magick_2.8.5
[29] commonmark_1.9.2   tidyselect_1.2.1   digest_0.6.37      stringi_1.8.4
[33] rsvg_2.6.1         rprojroot_2.0.4    fastmap_1.2.0      grid_4.4.0
[37] colorspace_2.1-1   cli_3.6.4          magrittr_2.0.3     utf8_1.2.4
[41] withr_3.0.2        rappdirs_0.3.3     bit64_4.5.2        timechange_0.3.0
[45] rmarkdown_2.29     tidytuesdayR_1.1.2 gitcreds_0.1.2     bit_4.5.0
[49] hms_1.1.3          evaluate_1.0.1     knitr_1.49         markdown_1.13
[53] gridGraphics_0.5-1 rlang_1.1.6        gridtext_0.1.5     Rcpp_1.0.13-1
[57] xml2_1.3.6         renv_1.0.3         vroom_1.6.5        svglite_2.1.3
[61] rstudioapi_0.17.1  jsonlite_1.8.9     R6_2.5.1           fs_1.6.5
[65] systemfonts_1.1.0

9. GitHub Repository

Expand for GitHub Repo

The complete code for this analysis is available in tt_2025_44.qmd.

For the full repository, click here.

10. References

Expand for References

Primary Source:
- Loux, T., & Gibson, A. K. (2019). Using Flint, Michigan, lead data in introductory statistics. Teaching Statistics, 41(3), 85-88. https://doi.org/10.1111/test.12187
Data Source:
- TidyTuesday 2025 Week 44: Lead concentration in Flint water samples in 2015
Additional Context:
- Pieper, K. J., Tang, M., & Edwards, M. A. (2017). Flint water crisis caused by interrupted corrosion control: Investigating “ground zero” home. Environmental Science & Technology, 51(4), 2007-2014.
- EPA. (n.d.). Basic information about lead in drinking water

11. Custom Functions Documentation

📦 Custom Helper Functions

This analysis uses custom functions from my personal module library for efficiency and consistency across projects.

Functions Used:

fonts.R: setup_fonts(), get_font_families() - Font management with showtext
social_icons.R: create_social_caption() - Generates formatted social media captions
image_utils.R: save_plot() - Consistent plot saving with naming conventions
base_theme.R: create_base_theme(), extend_weekly_theme(), get_theme_colors() - Custom ggplot2 themes

Why custom functions?
These utilities standardize theming, fonts, and output across all my data visualizations. The core analysis (data tidying and visualization logic) uses only standard tidyverse packages.

Source Code:
View all custom functions → GitHub: R/utils
