Small Nations Lead in Roundabout Adoption

Per capita analysis of countries with 10+ roundabouts shows New Zealand and Sweden clearly leading. Despite having 12,952 roundabouts, the USA sits near the median of these countries once population is accounted for (39 per million people).

Analyzing global roundabout adoption patterns through population-adjusted metrics reveals an unexpected story: small nations dominate per capita rankings while the USA’s massive infrastructure count becomes average when normalized.

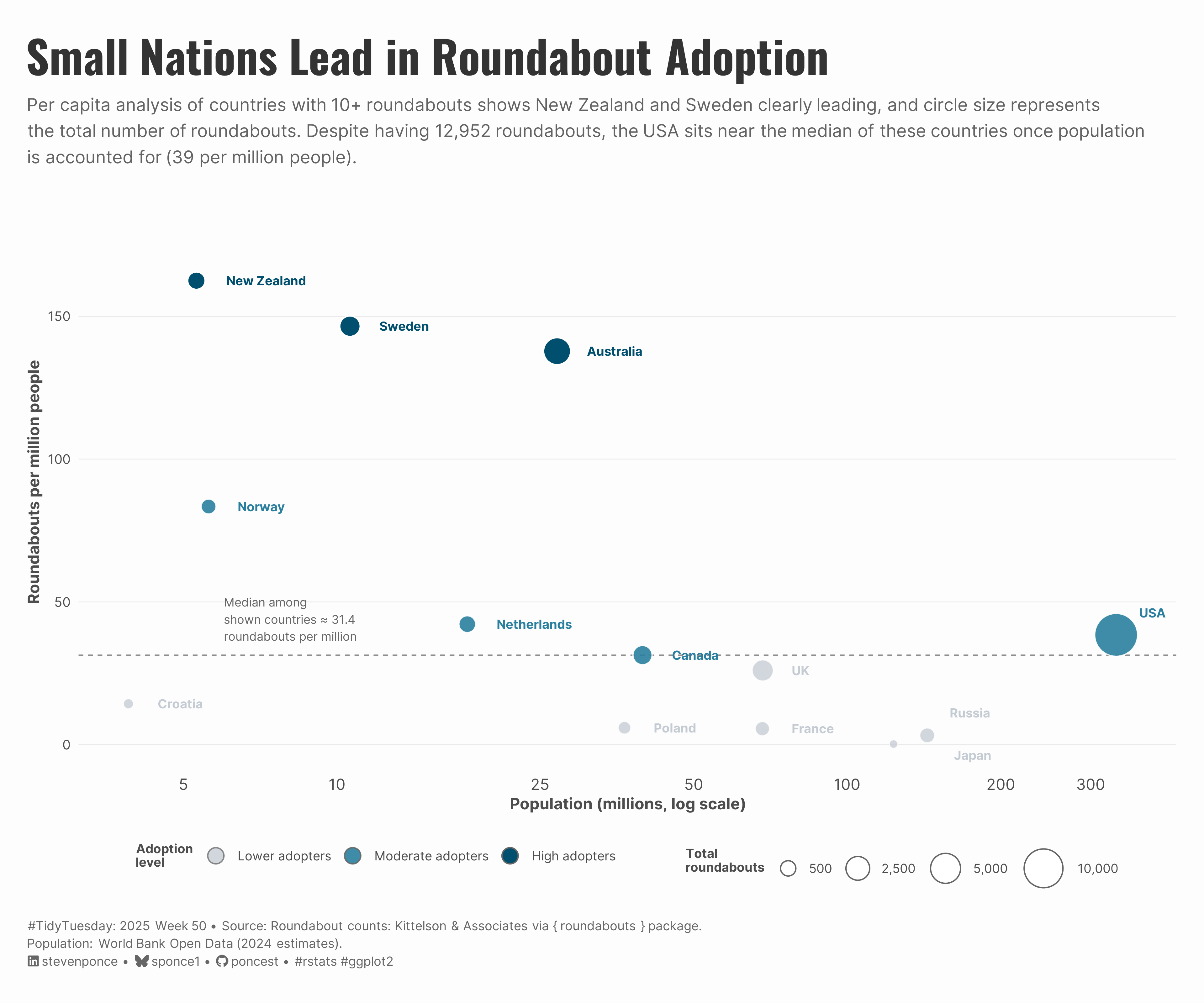

Figure 1: Scatter plot showing roundabouts per million people versus population (log scale) for 13 countries. New Zealand leads at ~165 per million, followed by Sweden (~147) and Australia (~137). Although the USA has the highest total number of roundabouts at 12,952 (represented by the largest bubble on the plot), it ranks near the median with only 39 roundabouts per million residents due to its large population. In contrast, smaller nations consistently demonstrate higher per capita adoption rates of roundabouts.

Steps to Create this Graphic

1. Load Packages & Setup

```{r}
#| label: load
#| warning: false
#| message: false
#| results: "hide"

## 1. LOAD PACKAGES & SETUP ----
suppressPackageStartupMessages({
if (!require("pacman")) install.packages("pacman")
pacman::p_load(
    tidyverse,     # Easily Install and Load the 'Tidyverse'
    ggtext,        # Improved Text Rendering Support for 'ggplot2'
    showtext,      # Using Fonts More Easily in R Graphs
    janitor,       # Simple Tools for Examining and Cleaning Dirty Data
    scales,        # Scale Functions for Visualization
    glue,          # Interpreted String Literals
    ggrepel        # Automatically Position Non-Overlapping Text Labels
)
})

### |- figure size ----
camcorder::gg_record(
  dir    = here::here("temp_plots"),
  device = "png",
  width  = 12,
  height = 10,
  units  = "in",
  dpi    = 320
)

# Source utility functions
suppressMessages(source(here::here("R/utils/fonts.R")))
source(here::here("R/utils/social_icons.R"))
source(here::here("R/utils/image_utils.R"))
source(here::here("R/themes/base_theme.R"))
```

2. Read in the Data

```{r}
#| label: read
#| include: true
#| eval: true
#| warning: false

tt <- tidytuesdayR::tt_load(2025, week = 50)

roundabouts <- tt$roundabouts_clean |> clean_names()

tidytuesdayR::readme(tt)
rm(tt)
```

3. Examine the Data

```{r}
#| label: examine
#| include: true
#| eval: true
#| results: 'hide'
#| warning: false

glimpse(roundabouts)
skimr::skim(roundabouts) |> summary()
```

4. Tidy Data

```{r}
#| label: tidy-fixed
#| warning: false

### |-  Clean roundabouts data ----
roundabouts_clean <- roundabouts |>
  clean_names() |>
  mutate(
    # Standardize country names
    country = case_when(
      country == "United States" ~ "USA",
      country == "United Kingdom" ~ "UK",
      TRUE ~ country
    )
  )

### |-  Population data for normalization ----
# Source: World Bank Open Data (data.worldbank.org/indicator/SP.POP.TOTL)
# 2024 estimates - Selected countries with 10+ roundabouts for meaningful comparison
country_populations <- tibble(
  country = c(
    "USA", "Australia", "UK", "Sweden", "Canada",
    "New Zealand", "Netherlands", "Norway", "France",
    "Russia", "Japan", "Poland", "Croatia"
  ),
  population_millions = c(
    336.7, 27.0, 68.3, 10.6, 39.7,
    5.3, 18.0, 5.6, 68.2,
    143.5, 123.3, 36.6, 3.9
  )
)

### |-  Calculate per capita rates ----
per_capita_analysis <- roundabouts_clean |>
  count(country, name = "total_roundabouts") |>
  inner_join(country_populations, by = "country") |>
  mutate(
    per_million = total_roundabouts / population_millions,
    # Categorize for emphasis
    highlight = case_when(
      per_million > 100 ~ "High adopters",
      per_million > 30 ~ "Moderate adopters",
      TRUE ~ "Lower adopters"
    ),
    highlight = factor(
      highlight,
      levels = c("High adopters", "Moderate adopters", "Lower adopters")
    )
  ) |>
  arrange(desc(per_million))

# Median reference
median_per_million <- median(per_capita_analysis$per_million)

median_label <- glue(
  "Median among\nshown countries ≈ {round(median_per_million, 1)}\nroundabouts per million"
)
```

5. Visualization Parameters

```{r}
#| label: params
#| include: true
#| warning: false

### |-  plot aesthetics ----
colors <- get_theme_colors(
    palette = list(
        high  = "#004F6E",
        moderate = "#2A7F9E",
        lower  = "#C4CBD3"
    )
)

### |- titles and caption ----
title_text <- "Small Nations Lead in Roundabout Adoption"

subtitle_text <- glue(
    "Per capita analysis of countries with 10+ roundabouts shows ",
    "**New Zealand** and **Sweden** clearly leading, and circle size represents<br>",
    "the total number of roundabouts. Despite having 12,952 roundabouts, the **USA** sits near the median ",
    "of these countries once population<br>",
    "is accounted for (39 per million people)."
)

caption_text <- create_social_caption(
    tt_year = 2025,
    tt_week = 50,
    source_text = paste(
        "Roundabout counts: Kittelson & Associates via { roundabouts } package.<br>",
        "Population: World Bank Open Data (2024 estimates)."
    )
)

### |-  fonts ----
setup_fonts()
fonts <- get_font_families()

### |-  plot theme ----
# Start with base theme
base_theme <- create_base_theme(colors)

# Add weekly-specific theme elements
weekly_theme <- extend_weekly_theme(
  base_theme,
  theme(
    # Text styling
    plot.title = element_markdown(
      face = "bold", family = fonts$title, size = rel(1.4),
      color = colors$title, margin = margin(b = 10), hjust = 0
    ),
    plot.subtitle = element_markdown(
      face = "italic", family = fonts$subtitle, lineheight = 1.2,
      color = colors$subtitle, size = rel(0.9), margin = margin(b = 20), hjust = 0
    ),

    # Grid
    panel.grid.minor = element_blank(),
    panel.grid.major.x = element_blank(),
    panel.grid.major = element_line(color = "gray90", linewidth = 0.25),

    # Axes
    axis.title = element_text(size = rel(0.8), color = "gray30"),
    axis.text = element_text(color = "gray30"),
    axis.text.y = element_text(size = rel(0.85)),
    axis.ticks = element_blank(),

    # Facets
    strip.background = element_rect(fill = "gray95", color = NA),
    strip.text = element_text(
      face = "bold",
      color = "gray20",
      size = rel(0.9),
      margin = margin(t = 6, b = 4)
    ),
    panel.spacing = unit(1.5, "lines"),

    # Legend elements
    legend.position = "plot",
    legend.title = element_text(
      family = fonts$subtitle,
      color = colors$text, size = rel(0.8), face = "bold"
    ),
    legend.text = element_text(
      family = fonts$tsubtitle,
      color = colors$text, size = rel(0.7)
    ),
    legend.margin = margin(t = 15),

    # Plot margin
    plot.margin = margin(20, 20, 20, 20)
  )
)

# Set theme
theme_set(weekly_theme)
```

6. Plot

```{r}
#| label: plot
#| warning: false

### |-  main plot ----
p <- ggplot() +
  # Geoms
  geom_hline(
    yintercept = median_per_million,
    linetype = "dashed",
    color = "gray55",
    linewidth = 0.4
  ) +
  geom_point(
    data = per_capita_analysis |> filter(highlight == "Lower adopters"),
    aes(
      x = population_millions, y = per_million,
      size = total_roundabouts, fill = highlight
    ),
    shape = 21, color = "white", alpha = 0.75, stroke = 0.5
  ) +
  geom_point(
    data = per_capita_analysis |> filter(highlight == "Moderate adopters"),
    aes(
      x = population_millions, y = per_million,
      size = total_roundabouts, fill = highlight
    ),
    shape = 21, color = "white", alpha = 0.9, stroke = 0.6
  ) +
  geom_point(
    data = per_capita_analysis |> filter(highlight == "High adopters"),
    aes(
      x = population_millions, y = per_million,
      size = total_roundabouts, fill = highlight
    ),
    shape = 21, color = "white", alpha = 1, stroke = 0.7
  ) +
  geom_text_repel(
    data = per_capita_analysis,
    aes(
      x = population_millions,
      y = per_million,
      label = country,
      color = highlight
    ),
    size = 3.2,
    family = fonts$text,
    fontface = "bold",
    max.overlaps = 20,
    min.segment.length = 0,
    box.padding = 0.5,
    point.padding = 16.45,
    nudge_x = 0.02,
    force = 0.2,
    seed = 123
  ) +
  # Annotate
  annotate(
    "text",
    x = 6, y = median_per_million + 5,
    label = median_label,
    family = fonts$text,
    size = 3,
    hjust = 0,
    vjust = 0,
    color = "gray40"
  ) +
  # Scales
  scale_fill_manual(
    name = "Adoption\nlevel",
    values = c(
      "High adopters" = colors$palette$high,
      "Moderate adopters" = colors$palette$moderate,
      "Lower adopters" = colors$palette$lower
    )
  ) +
  scale_color_manual(
    name = "Adoption\nlevel",
    values = c(
      "High adopters" = colors$palette$high,
      "Moderate adopters" = colors$palette$moderate,
      "Lower adopters" = colors$palette$lower
    )
  ) +
  scale_size_continuous(
    name = "Total\nroundabouts",
    range = c(2.5, 14),
    breaks = c(500, 2500, 5000, 10000),
    labels = label_comma()
  ) +
  scale_x_log10(
    labels = label_comma(),
    breaks = c(5, 10, 25, 50, 100, 200, 300)
  ) +
  scale_y_continuous(
    labels = label_number(accuracy = 1),
    breaks = seq(0, 200, 50),
    limits = c(0, 175),
    expand = expansion(mult = c(0.05, 0.1))
  ) +
  # Labs
  labs(
    title = title_text,
    subtitle = subtitle_text,
    caption = caption_text,
    x = "Population (millions, log scale)",
    y = "Roundabouts per million people"
  ) +
  # Guides
  guides(
    fill = guide_legend(
      order = 1,
      nrow = 1,
      title.vjust = 0.8,
      override.aes = list(
        shape = 21,
        size = 5,
        stroke = 0.7,
        color = "grey40"
      )
    ),
    size = guide_legend(
      order = 2,
      nrow = 1,
      title.vjust = 0.8,
      override.aes = list(
        shape = 21,
        color = "grey40",
        fill  = "white",
        alpha = 1
      )
    ),
    color = "none"
  ) +
  # Theme
  theme(
    plot.title = element_markdown(
      size = rel(2.3),
      family = fonts$title,
      face = "bold",
      color = colors$title,
      lineheight = 1.15,
      margin = margin(t = 8, b = 5)
    ),
    plot.subtitle = element_markdown(
      size = rel(0.9),
      family = fonts$subtitle,
      color = alpha(colors$subtitle, 0.88),
      lineheight = 1.5,
      margin = margin(t = 5, b = 20)
    ),
    plot.caption = element_markdown(
      size = rel(0.65),
      family = fonts$subtitle,
      color = colors$caption,
      hjust = 0,
      lineheight = 1.4,
      margin = margin(t = 20, b = 5)
    ),
    panel.grid.minor.x = element_blank(),
    panel.grid.major.x = element_blank(),
    legend.position = "bottom",
    legend.box = "horizontal",
    legend.spacing.x = unit(3.5, "lines"),
    legend.box.spacing = unit(0.5, "lines"),
    legend.title = element_text(
      family = fonts$text, size = 9, hjust = 0,
      face = "bold", margin = margin(r = 8)
    ),
    legend.text = element_text(family = fonts$text, size = 9)
  )
```

7. Save

```{r}
#| label: save
#| warning: false

### |-  plot image ----
save_plot(
  plot = p,
  type = "tidytuesday",
  year = 2025,
  week = 50,
  width  = 12,
  height = 10,
  )
```

8. Session Info

Expand for Session Info

R version 4.4.1 (2024-06-14 ucrt)
Platform: x86_64-w64-mingw32/x64
Running under: Windows 11 x64 (build 26100)

Matrix products: default


locale:
[1] LC_COLLATE=English_United States.utf8
[2] LC_CTYPE=English_United States.utf8
[3] LC_MONETARY=English_United States.utf8
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.utf8

time zone: America/New_York
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices datasets  utils     methods   base

other attached packages:
 [1] here_1.0.1      ggrepel_0.9.6   glue_1.8.0      scales_1.3.0
 [5] janitor_2.2.0   showtext_0.9-7  showtextdb_3.0  sysfonts_0.8.9
 [9] ggtext_0.1.2    lubridate_1.9.3 forcats_1.0.0   stringr_1.5.1
[13] dplyr_1.1.4     purrr_1.0.2     readr_2.1.5     tidyr_1.3.1
[17] tibble_3.2.1    ggplot2_3.5.1   tidyverse_2.0.0 pacman_0.5.1

loaded via a namespace (and not attached):
 [1] gtable_0.3.6       xfun_0.49          httr2_1.0.6        htmlwidgets_1.6.4
 [5] gh_1.4.1           tzdb_0.5.0         vctrs_0.6.5        tools_4.4.0
 [9] generics_0.1.3     parallel_4.4.0     curl_6.0.0         gifski_1.32.0-1
[13] fansi_1.0.6        pkgconfig_2.0.3    skimr_2.1.5        lifecycle_1.0.4
[17] farver_2.1.2       compiler_4.4.0     textshaping_0.4.0  munsell_0.5.1
[21] repr_1.1.7         codetools_0.2-20   snakecase_0.11.1   htmltools_0.5.8.1
[25] yaml_2.3.10        crayon_1.5.3       pillar_1.9.0       camcorder_0.1.0
[29] magick_2.8.5       commonmark_1.9.2   tidyselect_1.2.1   digest_0.6.37
[33] stringi_1.8.4      rsvg_2.6.1         rprojroot_2.0.4    fastmap_1.2.0
[37] grid_4.4.0         colorspace_2.1-1   cli_3.6.4          magrittr_2.0.3
[41] base64enc_0.1-3    utf8_1.2.4         withr_3.0.2        rappdirs_0.3.3
[45] bit64_4.5.2        timechange_0.3.0   rmarkdown_2.29     tidytuesdayR_1.1.2
[49] gitcreds_0.1.2     bit_4.5.0          ragg_1.3.3         hms_1.1.3
[53] evaluate_1.0.1     knitr_1.49         markdown_1.13      rlang_1.1.6
[57] gridtext_0.1.5     Rcpp_1.0.13-1      xml2_1.3.6         renv_1.0.3
[61] vroom_1.6.5        svglite_2.1.3      rstudioapi_0.17.1  jsonlite_1.8.9
[65] R6_2.5.1           systemfonts_1.1.0

9. GitHub Repository

Expand for GitHub Repo

The complete code for this analysis is available in tt_2025_50.qmd.

For the full repository, click here.

10. References

Expand for References

1. Data Source:
   • TidyTuesday 2025 Week 50: Roundabouts across the world

11. Custom Functions Documentation

📦 Custom Helper Functions

This analysis uses custom functions from my personal module library for efficiency and consistency across projects.

Functions Used:

• fonts.R: setup_fonts(), get_font_families() - Font management with showtext
• social_icons.R: create_social_caption() - Generates formatted social media captions
• image_utils.R: save_plot() - Consistent plot saving with naming conventions
• base_theme.R: create_base_theme(), extend_weekly_theme(), get_theme_colors() - Custom ggplot2 themes

Why custom functions?
These utilities standardize theming, fonts, and output across all my data visualizations. The core analysis (data tidying and visualization logic) uses only standard tidyverse packages.

Source Code:
View all custom functions → GitHub: R/utils
